Graco SaniForce 5:1: High-Performance Sanitary Drum Pump Overview: The Graco SaniForce 5:1 is a robust and reliable drum pump designed specifically for high-pressure sanitary applications. It is ideal for transferring thick, viscous materials commonly found in the food, beverage, personal care, and pharmaceutical industries. This pump is engineered to handle challenging materials, including those
Motor Size: 3 kW Max Temp: 80 Degrees C Mechanical Seal: Single SIC/SIC/FKM Power Supply: 3-Phase, 415V, 50Hz Connections: DN50/DN50 Inclusions: - Control Box with VSD and EMC Filter - SUS Cover over Motor - Mobile Trolley
Thanks to the hopper and auger, the KST progressive cavity pumps are suitable for pumping high viscosity products, doughs, pastes and liquids with suspended particles. Design and features KST type is a sanitary progressive cavity pump. Bare shaft construction with bearing support. Pump casing with hopper. Fixed transmission. Excentric outlet. Capacity at 100 rev: 9.8L Max flow: 2.9 m3/h Max pre
Comes fitted with Wilden Pump P2 Item Number: WP-02-10272 Model: P2 Central Block: Polypropylene Air Valve: Polypropylene Air Inlet: 1/4"FNPT Liquid Inlet: 25mm 1" Liquid discharge: 25mm 1" Connection type: DIN/ANSI Flanged Max flow rate: 140 lpm (37 gpm) Max inlet pressure: 8.6 bar (125 psig) Max Size Solids: 3.2mm (1/7") Max Suction Lift: 5.5m Dry (18.0'), 8.8m Wet (29.0') Inlet 76mm off gro
Electrics:415V, 10.6A, 50Hz, 5.50kW Auger port: 75mm Auger pitch: 115mm Auger dia: 145mm OD Auger length: 430mm Motor Gearbox: SEW Eurodrive RPM: 1480/321
Hopper infeed height: 1390mm off ground Hopper inlet: 1890mm x 1720mm Hopper volume: 1750L Discharge port: 73mm Electrics: 415V, 50Hz
Air Operated Drum Unloading System Equipped with double diaphragm pump with approximately 4 In. diameter tri-clamp ports and pneumatically operated ram. On casters for portability, system has stainless steel ramp and stainless control panel with controls for on/off, raising and lowering, etc Stainless steel construction, mobile on lock castors. It includes a roller base for easy drum loading. D
Only sold AS IS, WHERE IS. The TRVX series of single-stage valved liquid ring vacuum pumps introduces an innovative project, new performance, greater reliability and is the result of Pompetravaini's experience and feedback from end users. The result is a milestone in the design and production of liquid ring vacuum pumps, offering tangible benefits to users. The new hydraulic profile allows a pe
Previously doing 200L pizza sauce (tomato base) Main cylinder: DNC-125-120-PPV-A 163496 FD11 pmax: 10 bar Discharge port: 50mm ID (1330mm off ground)
Stainless steel centrifugal pump Stampcode 0424490360 Inlet: 45mm ID (165mm high) Outlet: 35 ID (335mm high) Motor: Weg 41V, 50Hz, 4 kW, 2910 rpm, 7.27A,

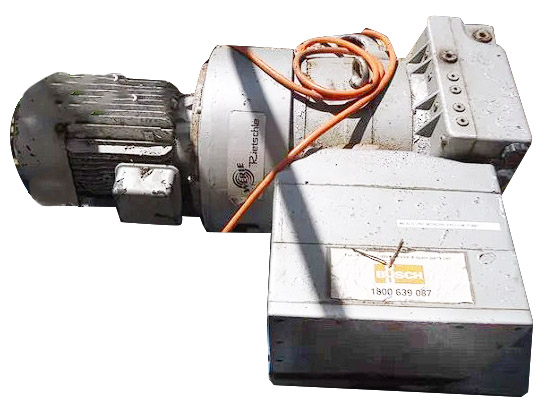

The oil lubricated rotary vane vacuum pump V-VC 303 comes with a flange motor with bearings on both sides of the rotor, oil / air heat exchange. Fitted as standard with fine mesh filter or micro inlet filter, vacuum non-return valve, gas ballast valve, oil separator and protection cover. Versions with water cooling available. Advantages at a glance - Low noise level - Robust and economical - Lon
These heavy duty semi-hygienic pumps are specifically designed for wine and beverage transfer applications and can also be used for other food and beverages applications. Standard connections include IDF, SMS, RJT. PRINCIPLE OF OPERATION Progressive Cavity Pumps ROTO’s PCP pump comprises a precision-machined single external helix metallic rotor that rotates inside an internal double helix elast
Displacement per revolution: 0.153 Gal. (0.579L) Nominal Capacity: 90 GPM (20.4 m3/hr) Maximum Pressure: 300 PSI (20.7 bar) Ports ID: 60mm Ports Standard: Sanitary Clamp Type Is available in a variety of styles including S-Line, I-Line and Q-Line Male NPT and 150 lb. Rotors Standard: Twin Wing - Standard; suitable for most applications. Single Wing - For reduced breakage on fluids with dis
This unit includes motor, gearbox and the dual shaft pump base driven by chain sprocket without the pump head 3~, 415V, 05Hz, 4pin plug Mobile on castors Includes DOL Motor: Make: Western electric 3~, 415V, 1.5PS, 50Hz 440-400V, 1410rpm 0.80-2.5A Gearbox 1: 1000rpm-190rpm Gearbox 2: ratio - 12.68 Pump Make: Waukesha Cherry-Burell Model: 060 S/N: 211969 97
GRACO SANIFORCE series 6:1 ratio piston pump Drum unloader painted steel Evacuation rates of up to 4 gpm (15 lpm) at 60 cpm 600 psi (41 bar, 4.1 MPa), outlet pressure One size follower plate and seal to accommodate straight-sided and tapered drums Sanitary flange clamps for quick disassembly Unloading of somewhat flow-able to moderately flow-able fluids, from the original 55-gallon containers
APV pump with motor supported on 3 stainless steel legs. All product contact parts are made of austenitic stainless steel (AISI 316 L). The pump has an impeller directly mounted on the motor shaft. It is designed for cleaning by circulation of chemical cleaning fluids (CIP). In its standard version the ZMS 5 pump has a balanced shaft seal consisting of a rotating stainless steel ring and self
Part of 21708 Glass Bottle Rotary Filler
APV lobe mounted on a stainless steel frame. The frame platform has castors on one end for excellent maneuverability. The pump is powered by a 1.1 kW motor which includes a SEW controller for variable speed adjustment. Pump: Maximum Pressure 100 PSI g Max Speed 960 rpm Model: M0S/008 0 S/N: PP-3580-1099 Connector Size: 50mm Power Supply: Plug type: 3 Phase, 415V, 50Hz, 4Pin Motor
Stainless Steel frame (only) for Graco Pumps Previously used for H07C series pump. Base: 975 x 1070 mm
Watts: 14000 Refrigerant: R22 F.L.A: 13.4 Volts: 415 Phase: 3 Hertz: 50
Watts: 14000 Refrigerant: R22 F.L.A: 13.4 Volts: 415 Phase: 3 Hertz: 50
<Specifications> Motor Size: 1.1kW (103rpm) based on 20,000 cps, 600l/hr @ 1bar Supplied with 2" bsm connections, epdm stator, c/sic/epdm seals coupled to a 1.1kw geared motor with rpm to suit the duty required set on a stainless steel base plate.
Max Flow: 20 cbm/hr Max Speed: 1,450 rpm Motor Size: 3 kW In/Outlet Size: 2" Starting Torque: 24.4 Nm Reverse Torque: 51.6 Nm Max Differential Pressure: - Close-Coupled: 2 bar - Bare Shaft: 2 bar Max Working Temperature: 80 Degrees C
Max Flow: 4 cbm/hr Max Speed: 1,450 rpm Motor Size: 0.75 kW In/Outlet Size: 1" Starting Torque: 7.3 Nm Reverse Torque: 13.4 Nm Max Differential Pressure: - Close-Coupled: 2.5 bar - Bare Shaft: 4 bar Max Working Temperature: 80 Degrees C
<Specifications> 50L Heavy Duty Receival Hopper S/S Removable Splashguard for Hopper S/S Cover for Motor Supporting Beams on the Trolley (those that run diagonally) VSD and Electrical Wiring Wash-Down Rated (IP65) Control Box On Trolley and Wheels Height from Ground to Top of Hopper: 750mm
The design for eliminating edges, corners, concave parts to enhance washing efficiency.The limit number of liquid contact parts enables easy disassembling and reassembling.Capacity Discharge:Up to 177 L/min Pressure:Up to 1.2 MPa Product Uses: Condensed milk, Liquid egg, honey, jelly, jam, cosmetic milky lotion, shampoo, perfume material, etc. Features Easy disassembling/assembling. Minimu
<Specifications> Max Working Fluid Pressure: 430psi (3MPa, 30bar) Compressed Air Requirement: 80-100 psi (0.55-0.7MPa, 5.5-7bar) Max Inlet Air Pressure: 100psi (0.7MPa, 7bar) Air Inlet Size: 3/4 in npt (f) Fluid Displacement (Each Pump): 0.23 gal/cycle Max Flow @ 60 cpm*: 28 gpm (106 lpm) Pumps: 2 x FT 14 Pressure Ratio: 4.3:1 Air Consumption @ 70 psi (Each Pump): ~1.8 scfm/gpm (0.48MPa,
<Specifications> Displacement: 0.45 Ltr/rotation In/Outlet Size: 3" Speed Range: 50 - 600 r/min Flow Rate Range: 1,350 - 16,200 Ltr/hr Power Consumption: 4kW (5 HP) Included Accessories: - VSD & Filter - S/S Control Box
L Series Compact Liquid Ring Pumps for Heavy Duty Extreme conditions, which prevail in humid and wet processes, lead to lime scale or abrasion, and hence to a considerable reduction in the performance of the pump. Elmo Rietschle liquid ring pumps, however, meet these challenges Advantages at a glance •Constant operating characteristics by ceramic coating •Maximum abrasion resistance •
Good used ALLWEILER Helical Rotor (Progressing Cavity) Pump 70mm (2.75") used in the food industry. <Specifications> Performance Data ASBP Capacity (Q) : Up to 42L/min (product dependent) Discharge Pressure(PD): Up to 12 Bar Differential Pressure (PDIFF) Up to 12 Bar Viscosity (V) up to 2000mm²/s Fluid temperature (T) Up to 100 ° Construction features Block design (Motor attac
TECHNICAL SPECS: Diaphragms: PTFE Maximum fluid working pressure: 120 psi (8.0 bar, 0.8 MPa) Maximum flow rate : 41 gpm (159 L/m) Max Pumpable Solids: 3.2mm (1/8") **** Actual pump performance may be affected by prolonged usage at temperature Refer to the attached brochure for more details. Part No.: FD1111
This brand new IOPAK sanitary centrifugal pump is used mainly in the food and dairy industries to deliver liquid in smaller flow with high pressure and high pressure filtering. Flow Rate: 30,000L/Hr Pump Head: 24m (water used as product) Inlet/Outlet: 51mm NM - 50 Motor: ABB 5.5kW, 3 Phase Food Sanitary Standard Material SUS 316
This s/s NETZSCH NEMO NM Series Pumps are designed specifically for difficult pumping situations.THIS IS A MINI DOSING SERIES fitted with an ALFA LAVAL Actuator LENZE Motor: 0.37kW Motor 1410L/min @ 50 Hz 0.45kW Motor 1710L/min @ 60Hz 0.66kW Motor 2520L/min @ 87Hz You can be assured of the following: • Low shear rate • Non-pulsating metered flow • Volume practically unaffected by
This 50mm inlet Helical Rotor sanitary stainless steel pump was used in the food industry.Outlet reduced to 20mm. Fitted with 2 butterfly valves plus a pressure guage Features: - Minimal product degradation in shear-sensitive applications - Long service life in abrasive slurries and corrosive fluids
This s/s NETZSCH NEMO NM Series Pumps are designed specifically for difficult pumping situations.THIS IS A MINI DOSING SERIES fitted with an ALFA LAVAL Actuator LENZE Motor: 0.37kW Motor 1410L/min @ 50 Hz 0.45kW Motor 1710L/min @ 60Hz 0.66kW Motor 2520L/min @ 87Hz You can be assured of the following: • Low shear rate • Non-pulsating metered flow • Volume practically unaffected by
<Specifications> Pump Type: Priming Piston Max Fluid Pressure: 600 psi (41 Bar, 4.1 MPa) Max Flow at 60 cpm: 4.0 gpm (15.1 lpm) Viscosity Range: 60,000 - 100,000 cps Max Inlet Air Pressure: 100 psi (7 Bar, 0.7 MPa) Air Inlet Size (Enclosed, Exposed Controls): 1/2 npt(f), 3/4 npt(f) Evacuation Efficiency: 99% Available in Exposed or Enclosed Controls (enclosed slightly extra in price) Price is ba
<Specifications> Pump Type: Priming Piston Max Fluid Pressure: 1,200 psi (83 Bar, 8.3 MPa) Max Flow at 60 cpm: 8.5 gpm (32 lpm) Viscosity Range: 60,000 - 250,000 cps Max Inlet Air Pressure: 100 psi (7 Bar, 0.7 MPa) Air Inlet Size (Enclosed, Exposed Controls): 1/2 npt(f), 3/4 npt(f) Evacuation Efficiency: 99% Available in Exposed or Enclosed Controls! Price is based on part no. SDU.A05AAA1AA0C21
<Specifications> Pump Type: Double Ball Max Fluid Pressure: 400 psi (28 Bar, 2.8 MPa) Max Flow at 60 cpm: 14 gpm (53 lpm) Viscosity Range: 25,000 - 60,000 cps Max Inlet Air Pressure: 80 psi (5.5 Bar, 0.6 MPa) Air Inlet Size (Enclosed, Exposed Controls): 1/2 npt(f), 3/4 npt(f) Evacuation Efficiency: 99% Available in Exposed or Enclosed Controls (enclosed slightly extra in price) Price based on pa
IOPAK 2" JACKETED ROTARY LOBE PUMP is fitted with a HOPPER which is often requested on confectionery, bakery or sauce lines. It can be pushed from either side as it is skid mounted with handles at each end. This BRAND NEW rotary lobe pump comes with an ABB motor. The specification of the pump is as follows: Contact material SUS316 Lobe Pump Flow: 5600 - 11,000 litres / hr. (subject to pro
The most ideal pump for dairy application is the SaniForce 2150 High Sanitation Pump with overmoulded EPDM diaphragm. EASY TO CLEAN, QUICK KNOCKDOWN DESIGN! * Fluid Contact Areas are FDA -Compliant and meet CFR Title 21 * 3A Certified pump options to meet the sanitation requirements of the milk and dairy industry. * Featuring Graco's durable, lube-free, non-sticking air valve Maximum fluid working
EP4 - Typically used for abrasive material transfer applications SPECIFICATIONS Max Flow: 73.8 l/m (19.5 gal/m) Capacity: 0.568 l/rev (0.15 gal/rev) Max Discharge Pressure: 13.8 bar (200 psi) Hose Diameter: 29 mm Port Size: 1-1/4 in Male NPT Motor Consumption: 1.12kW (Low), 1.5kW (Mid/High) Pump Speed (50Hz): 19 rpm (Low), 43 rpm (Mid), 76 rpm (High) Flow Rate: 10.7 l/min (Low), 24.9 l/
EP3 - Typically used for chemical metering or sanitary applications SPECIFICATIONS Max Flow: 23.6 l/m (6.2 gal/m) Capacity: 0.182 l/rev (0.045 gal/rev) Max Discharge Pressure: 13.8 bar (200 psi) Hose Diameter: 19 mm Port Size: 3/4 in Male NPT Motor Consumption: 0.75kW (Low), 1.12kW (Mid) Pump Speed (50Hz): 15 rpm (Low), 42 rpm (Mid) Flow Rate: 2.67 l/min (Low), 7.5 l/min (Mid) Max Suct
EP2 - Typically used for chemical metering applications SPECIFICATIONS Max Flow: 7.9 l/m (2.1 gal/m) Capacity: 0.06 l/rev (0.016 gal/rev) Max Discharge Pressure: 13.8 bar (200 psi) Port Size: 1/2 in Male NPT Motor Consumption: 0.25kW (Low), 0.56kW (Mid) Pump Speed (50Hz): 9 rpm (Low), 29 rpm (Mid) Flow Rate: 0.53 l/min (Low), 2.58 l/min (Mid) Max Suction Lift: 8.9m (29 ft) Operation Ma
Brand new GRACO EP2 - Typically used for chemical metering applications SPECIFICATIONS Max Flow: 2.0 l/m (0.5 gal/m) Capacity: 0.015 l/rev (0.004 gal/rev) Max Discharge Pressure: 13.8bar (200 psi) Port Size: 1/2 in Male NPT Motor Consumption: 0.25kW (Low), 0.37kW (Mid) Pump Speed (50Hz): 9 rpm (Low), 29 rpm (Mid) Flow Rate: 0.14 l/min (Low), 0.43 l/min (Mid) Max Suction Lift: 8.9m (29 f
The GRACO 2.5" Air Operated Diaphragm Pump is much used in the food industry. It is useful for the following functions/foods: Concentrated fruit juice, sauces, pastes, starches, wine, jams, jellies,oils - Evacuation of food from mixing kettles - Transferring from original containers to mixing tanks - High Volume Evacuation of liquid concentrated from holding vessels - Repackaging of fluids from or
The GRACO SaniForce 1590 2" Air Operated Double Diaphragm Pump is much used in the food industry. It is useful for the following functions/foods: Concentrated fruit juice, sauces, pastes, starches, wine,jams, jellies,oils - Evacuation of food from mixing kettles - Transferring from original containers to mixing tanks - High Volume Evacuation of liquid concentrated from holding vessels - Repackagin
TECHNICAL SPECS Maximum fluid working pressure: 120 psi (8.4 bar, 0.8 MPa) Maximum free flow delivery*: 100 gpm (378.5 lpm) Maximum Cycle Rate: 200 cpm Maximum operating temperature***: Geolast - 150°F (65.5°C) Typical sound level at 70 psi air (4.9 bar, 0.49 MPa) air @ 50 cpm: 77 dBa Maximum air consumption: 125 scfm (3.5 m3/min.) Air pressure operating range: 20 to 120 psi (1.4 to 8.4 bar, 0.1
IOPAK 2" ROTARY LOBE PUMP This brand new IOPAK rotary lobe pump, is reliable and very reasonably priced! FEATURES * It designed to handle viscous or sensitive products with large particulates. * The butterfly curve of the rotor, ensures a characteristic smooth low shear pumping action. * This leads to the gentle throughput of delicate and sensitive products, without crushing or breaking t
Flow : 10MI/Min Pressure : Less than 10 bar There are 2 in stock at $350 plus GST each.
This brand new IOPAK self priming positive displacement pump is made AISI316 and comes with 3" (76mm) inlet and 2.5" (63mm) outlet. Self-priming pumps create and maintain a sufficient vacuum level to draw fluid with no external assistance. As a positive displacement pump, it is able to handle product mixed with air as well as product with a liquid level below the pump. This pump is useful in t
This brand new IOPAK 2.5" (63mm) self priming positive displacement pump is made AISI316. Self-priming pumps create and maintain a sufficient vacuum level to draw fluid with no external assistance. As a positive displacement pump, it is able to handle product mixed with air as well as product with a liquid level below the pump. This pump is useful in the milking room as it can suction milk str
This BRAND NEW rotary lobe 3" (75mm) hot water jacketed pump comes with an ABB motor, water proof control box, white wheel S/S castors, Trolley with handle, BSM connectors, S/S Cover, Mechanical seal. The pump is of excellent quality and very keenly priced.It is frequently used in the confectionery industry. The specification of the pump is as follows: Contact material SUS316 [Lobe Pump] Flow: 60
This pump is a sanitary arrangement featuring a quick release clamp to separate the body from the impeller facilitating easy and effective cleaning. Inlet 70mm. Outlet 50mm. Direct coupled to a 22kW motor, 2840RPM, 415V AC, 3 Phase, TEFC Electric Motor. Designed for heavy-duty, high-efficiency applications. Provides exceptional corrosion resistance. Impeller and shaft are one piece, which con

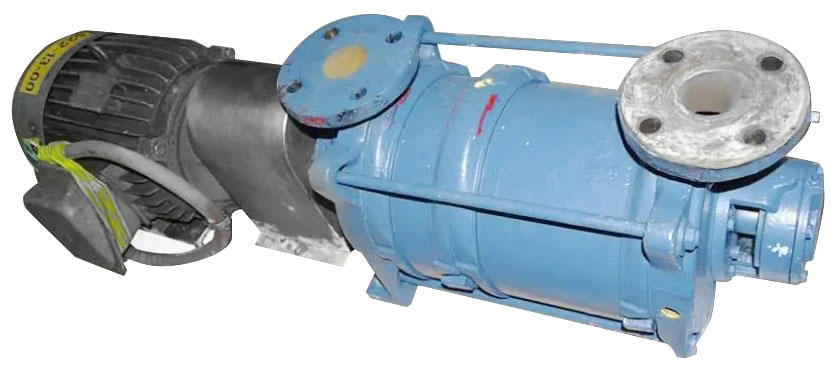

This STERLING SIHI Liquid Ring Compression Pump was used in a confectionery plant. Motor: 5.5kW, 4 POLE, 3 phase Inlet Outlet Dimensions: 50mm ID
This complete skid mounted pump system was used in a food plant on a very viscous, type of product similar to bean paste or jam. It consists of the GRACO pump, hopper with auger type agitator, self heated tank. ALL CONTACT PARTS ARE STAINLESS STEEL. The jacketed hopper is fitted with a NISSEI 0.20kW motor with a ratio of 1:60 which drives an auger. The auger has a very large single flight which g
This MOYNO Helical Rotor sanitary stainless steel pump was used in the bakery industry. Features: - Minimal product degradation in shear-sensitive applications - Long service life in abrasive slurries and corrosive fluids - Temperatures to 350° F, viscosities to 1,000,000 cps - Handle suspended solids to 1.1" diameter - Pressures to 225 psi; capacities from .02 to 345 gpm (Product de
This brand new IOPAK sanitary centrifugal pump is used mainly in the food and dairy industries to deliver liquid in smaller flow with high pressure and high pressure filtering. Flow Rate: 20,000L/Hr Pump Head: 24m (water used as product) Inlet/Outlet: 51mm NM - 50 Motor: ABB 4kW, 3 Phase Food Sanitary Standard Material SUS 316
This brand new IOPAK 2" (51mm) self priming positive displacement pump has all contacts fabricated of AISI316 s/s.Self-priming pumps create and maintain a sufficient vacuum level to draw fluid with no external assistance. * As a positive displacement pump, it is able to handle product mixed with air as well as product with a liquid level below the pump. * This pump is useful in the milking
IOPAK 1" ROTARY LOBE PUMP This brand new IOPAK rotary lobe pump, is reliable and very reasonably priced! FEATURES * It designed to handle viscous or sensitive products with large particulates. * The butterfly curve of the rotor, ensures a characteristic smooth low shear pumping action. * This leads to the gentle throughput of delicate and sensitive products, without crushing or breaking t
Wilden P1 - 13 mm (1/2") Plastic Pump Flow rate to 56.1 LPM (14.8 GPM) (taken from internet - not tested for capacity by PPN) Max Pressure = 8.6 BAR (125 PS NON-WETTED HOUSINGS Description Material Center Section Polypropylene or Acetal Air Valve Polypropylene or Acetal MAXIMUM SUCTION LIFT CAPABILITY 6.1 m (20') MAXIMUM DIAMETER SOLIDS 1.6 mm (1/16")
This high pressure pump would be suitable for feeding spray atomisers or similar applications requiring high pressure. This particular unit is 3 Cylinder, combines a 0-60 Bar pressure gauge and a relief valve on the outlet manifold, and features stainless casework.
The UERR series dry pumps are based on the durable Roots design principal that offer quiet operation, low vibration and low cost of pump rebuilds. This unit is capable of pulling vacuum to 0.04 Tor Motor size: 2.2kW Inlet and Outlet: One and a half inch. Broad product line offers an ideal basic pump configuration for each process and a wide range of pumping speeds. This unit is assembled usi
The UERR series dry pumps are based on the durable Roots design principal that offer quiet operation, low vibration and low cost of pump rebuilds. This unit is capable of pulling vacuum to 0.04 Tor Broad product line offers an ideal basic pump configuration for each process and a wide range of pumping speeds. This unit is assembled using two multi stage pumps mounted on a common mild steel frame
