Make: Wilson Model: FT031 S/N: 25581 DOM: 19/9/2018 415 VAC, 50Hz Maximum working head pressure: Fixed Heat storage volume: 1000L Maximum thermostat setting: 99 degrees Maximum cold water supply pressure: 800kPa Protection rating: IP35 Discharge size: 35mm ID, 125mm off ground External unit diameter: 1150mm Includes plumping, temperature sensors, valves, etc.
Made by DW Bingham Max working pressure: 42 Max working temp: 289F Test pressure: 84 Serial No: 2144 DOM: 11/5/1961 Capacity: 280 gallons Inspection no: D2217 ID: 1320mm Max depth: 1080mm Discharge: Butterfly valve, 35mm ID (280mm off ground) Motor gearbox: Make: Leroy-Somer Typ: LS63L2 S/N: 932165 Electric: - 240/415V, - 1.9/1/09A Power: 0.37kW, 50Hz, 3ph Rpm: 1500
Features: Jacketed Mixing Tank Dome shape internals Dual prop aerator/mixer Clockwise rotor Mixer: Make: Lightnin Model: XJA-100 S/N: K12594901 Specifications: Capacity: 545 L Volume: 0.545m3 Internal diameter: 1050mm Dome height: 750mm Discharge dia.: 650mm (situated at the bottom of the tank near the ground)
Stainless steel jacketed tank fitted with pump for hot oil. Pump: - Make: Sterling - Model: ZTND - S/N: 032 -160 - DN10-40 Fitting - Specs & Manual attached Horizontal, single-stage volute casing pumps with the dimensions and nominal ratings to EN 733 in back pull out design which permits the removal of the complete bearing unit toward the drive end without removing the pump casing fr
This 750L Food Grade Mixing Tank was manufactured by Izumi Food Machine Co and is in good condition. It was used for mixing liquids. The tank is fully enclosed, vertical with a full jacket. There is no self heating with this tank, and external boiler is required. A large manhole with quick-uncoupling clamps is situated atop, and to the one side of the slightly spherically enclosed vessel.
<Specifications> Overall Capacity: 3,600 Ltr Jacketed and Insulated <Process> As heat added to heating rack, oil block melted into trough. Trough has heating tubes. After complete melting, oil will flow to outlet via mesh strainer.
<Specifications> Overall Capacity: 4,300 Ltr Working Capacity: 4,000 Ltr Material Constructions: SUS304 Stirrer: 2.2kW, 47rpm, 50Hz, 415V Internal Diameter: 1,650 mm Overall Diameter: 1,750 mm Overall Height: 3,926 mm Outlet Height: 1,000 mm Off Floor Outlet Valve: 2" Manual Butterfly Valve Manhole: 600 mm Diameter

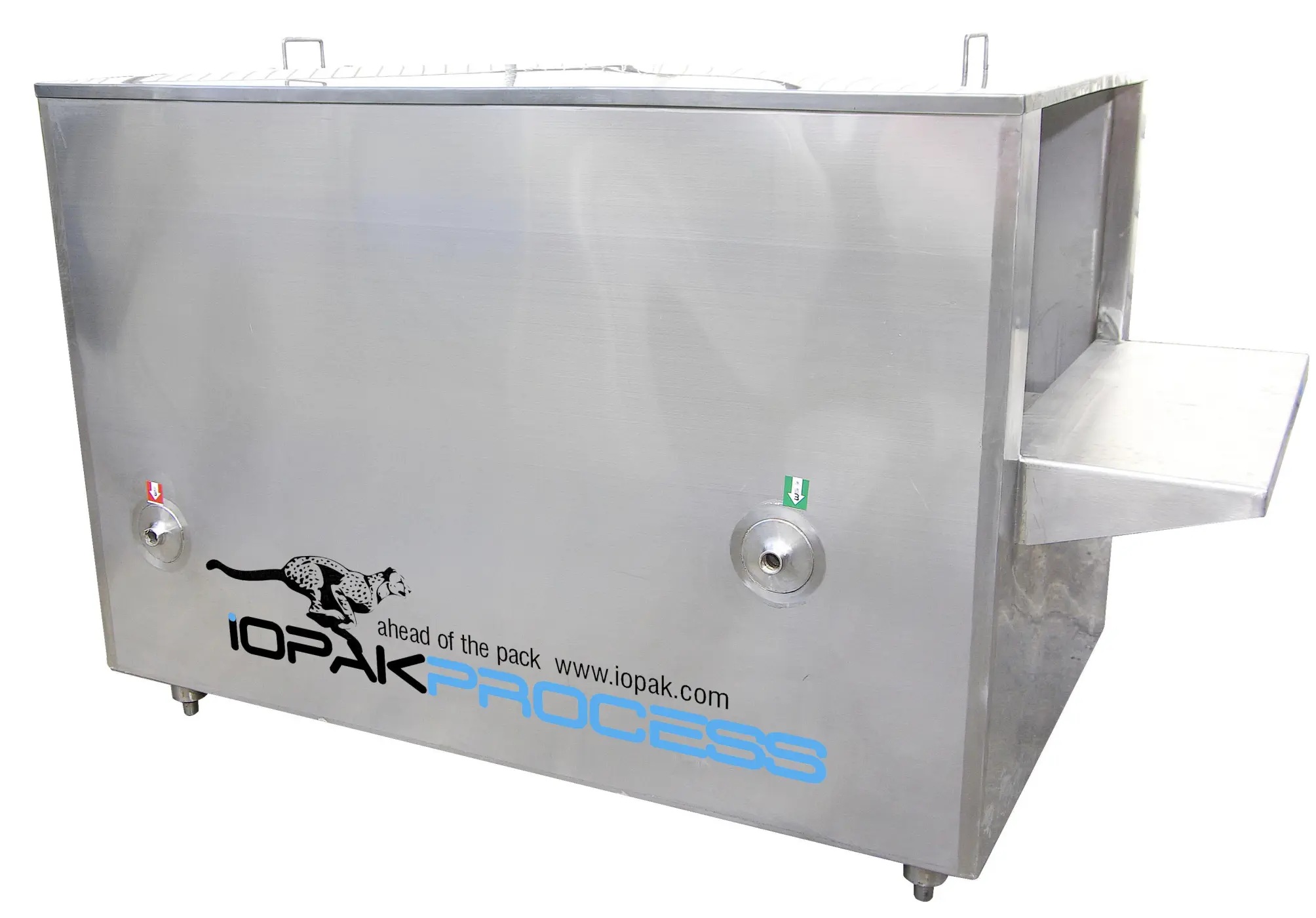

This new IOPAK stainless steel melting tank is designed to handle standard 25kg blocks of chocolate, fat or pastry butter. Pastry Butter has been specifically developed for laminated pastry applications and has a higher melting point than standard butter. The higher melting point (37 Degrees C ) gives a better performance in warm bakery conditions and makes a firmer, more robust pastry.
