Pumps   >   MasoSine Sine Pump - 3"
Get a quote Ask a question

MasoSine Sine Pump - 3"

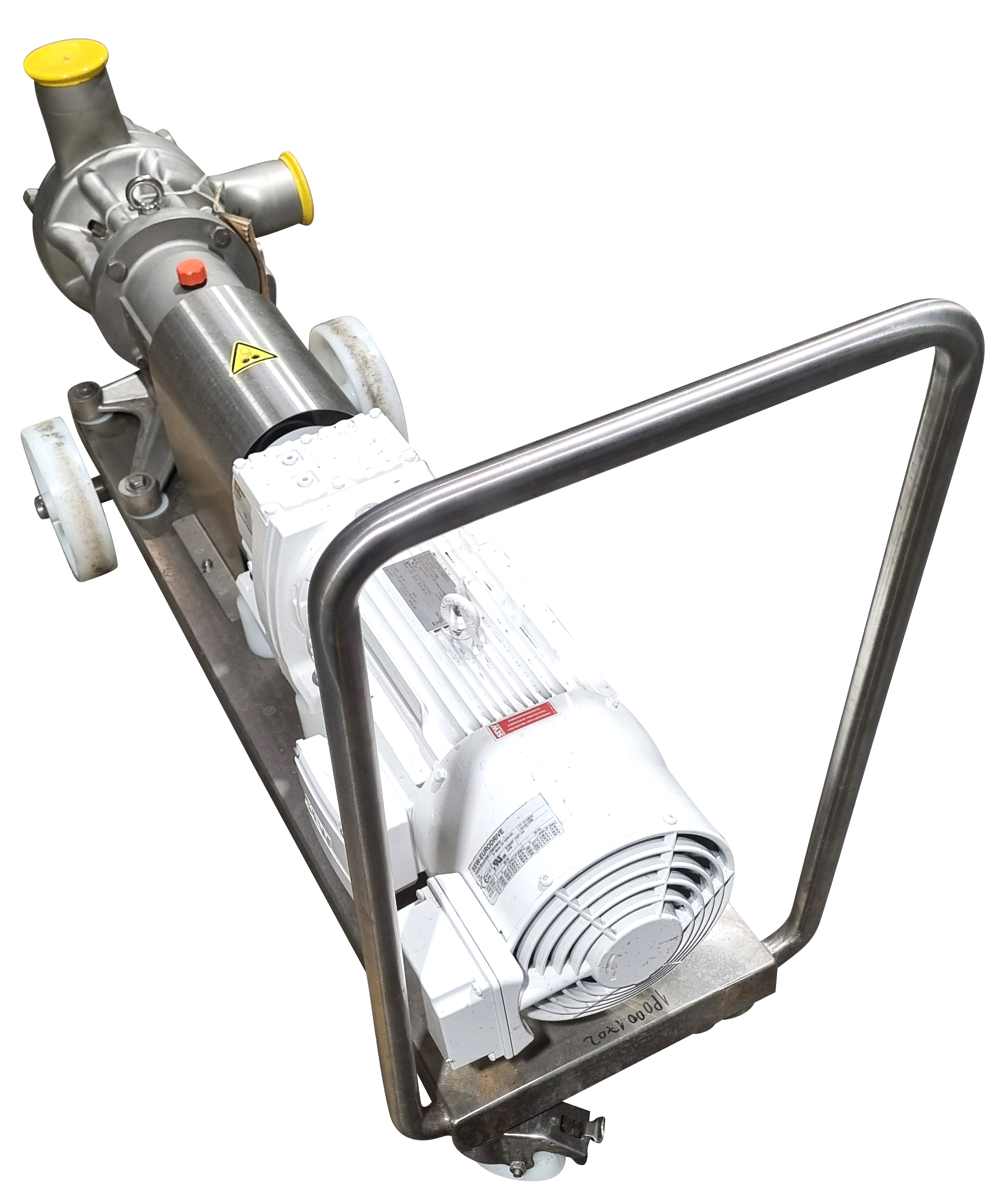

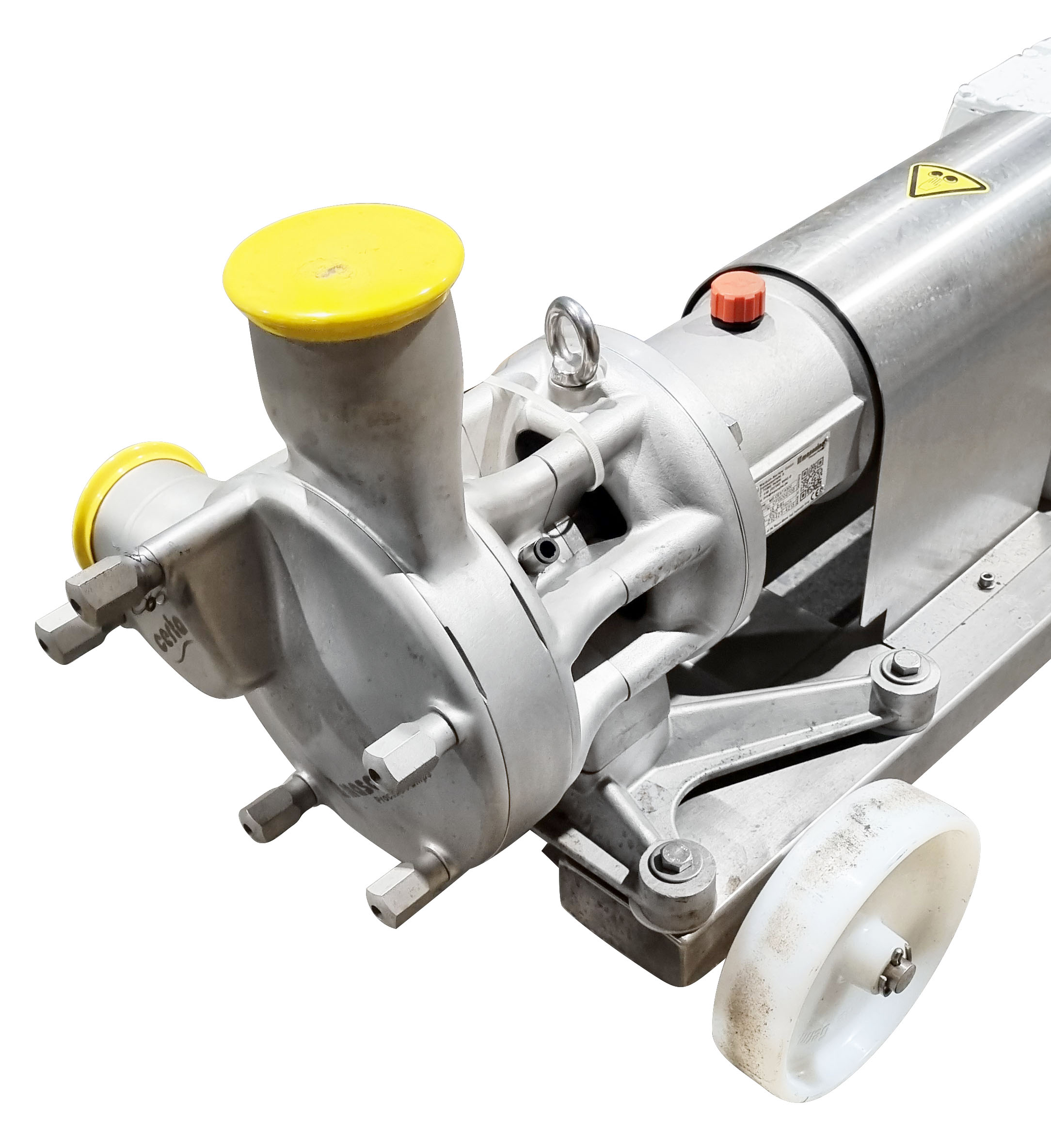

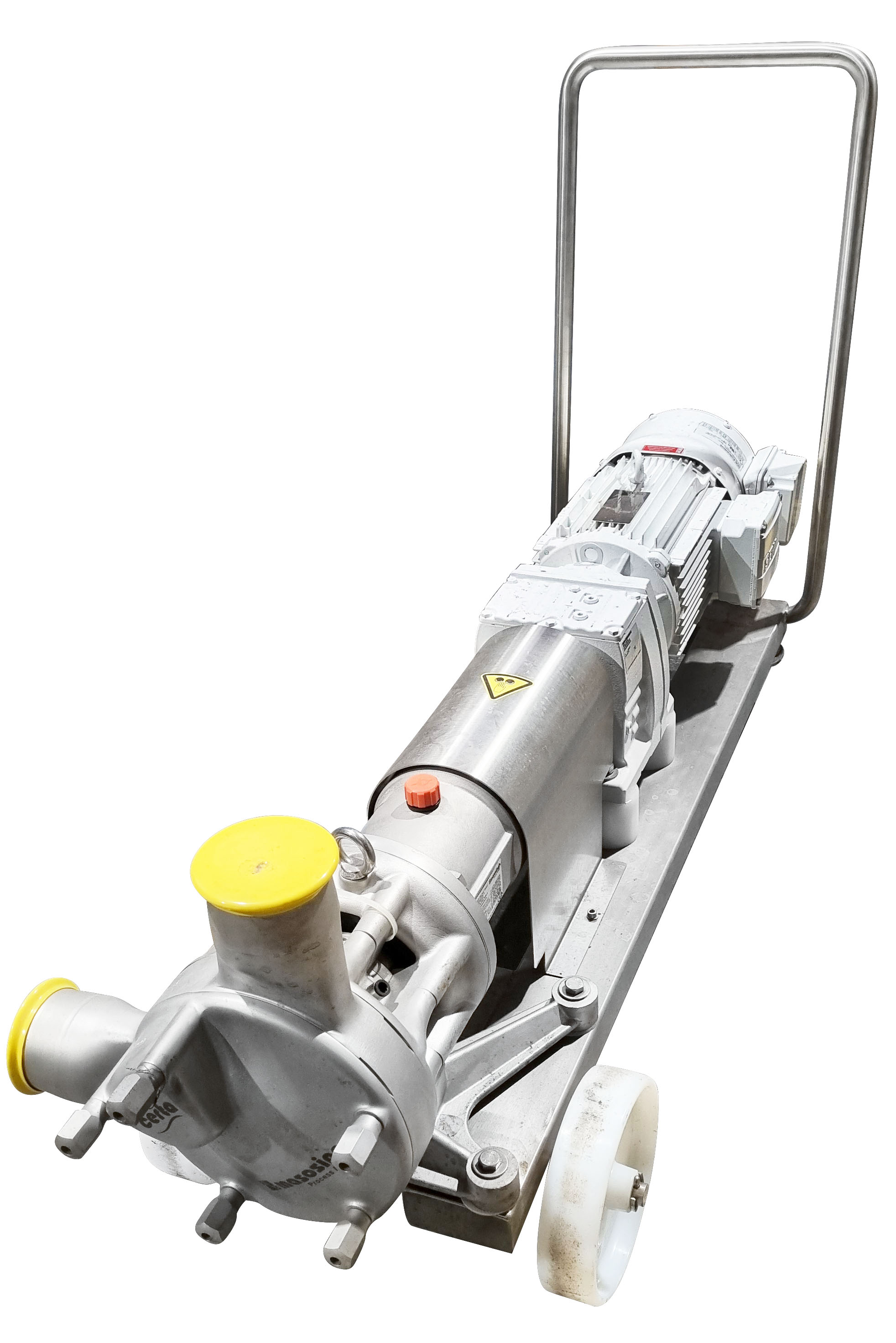

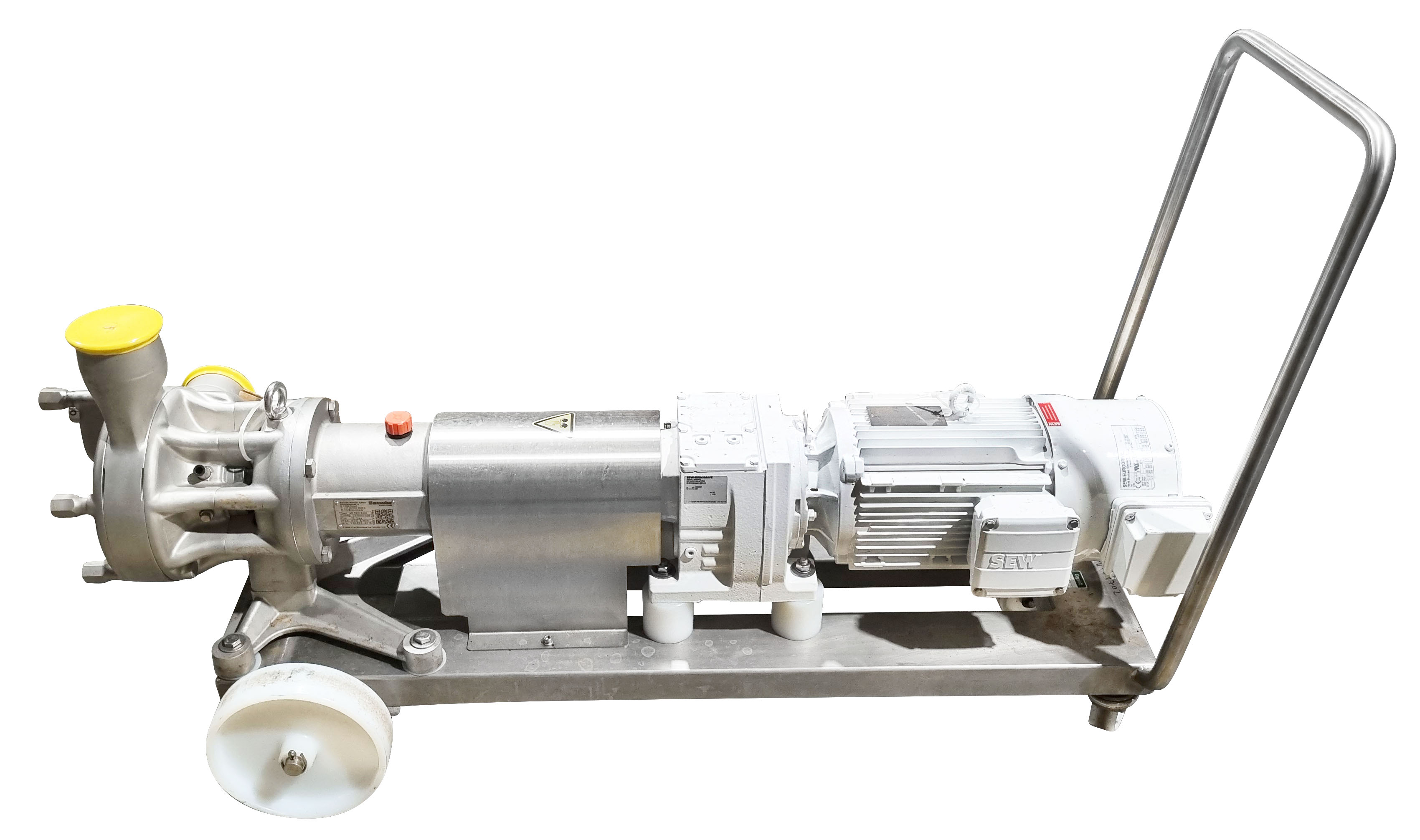

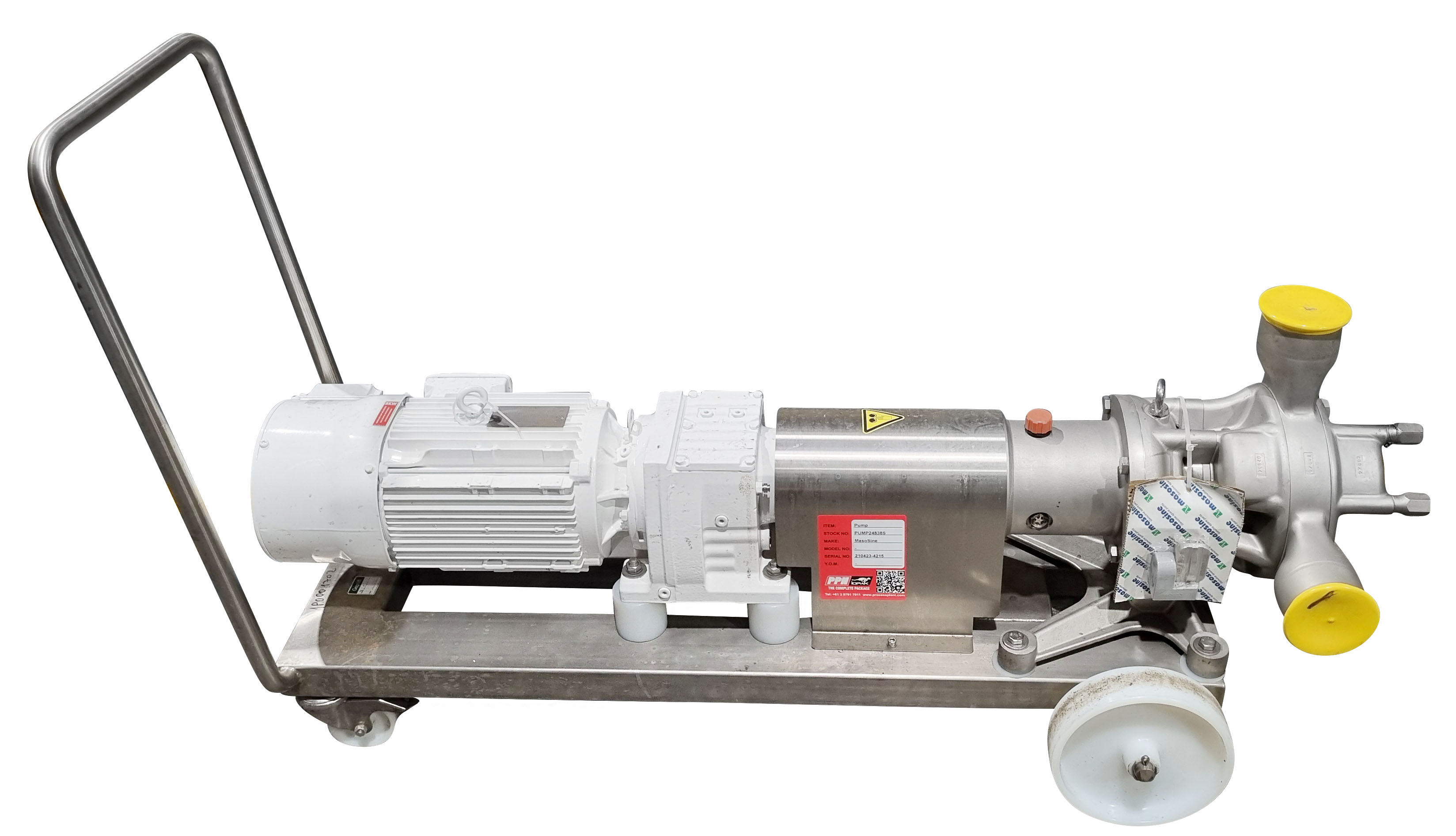

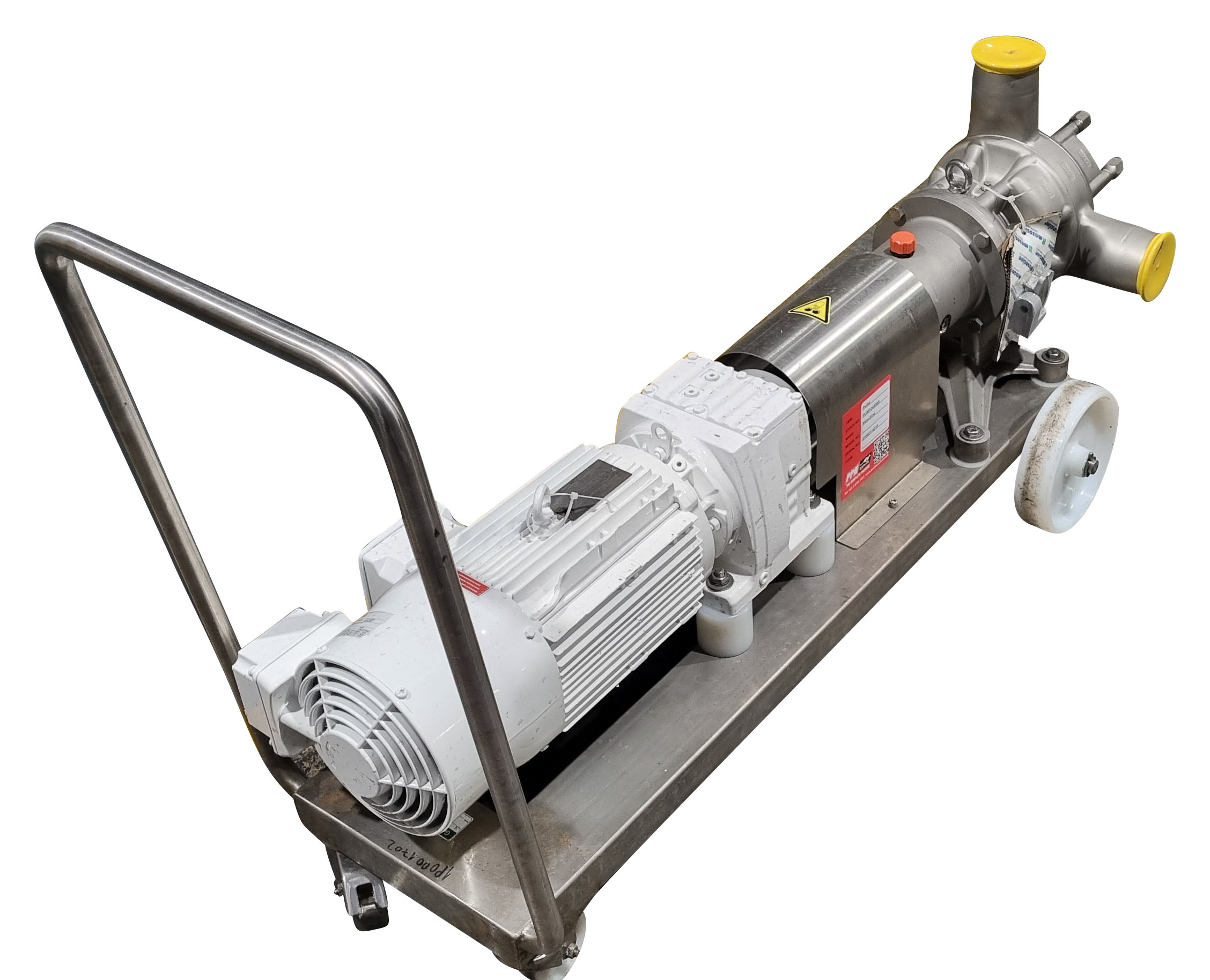

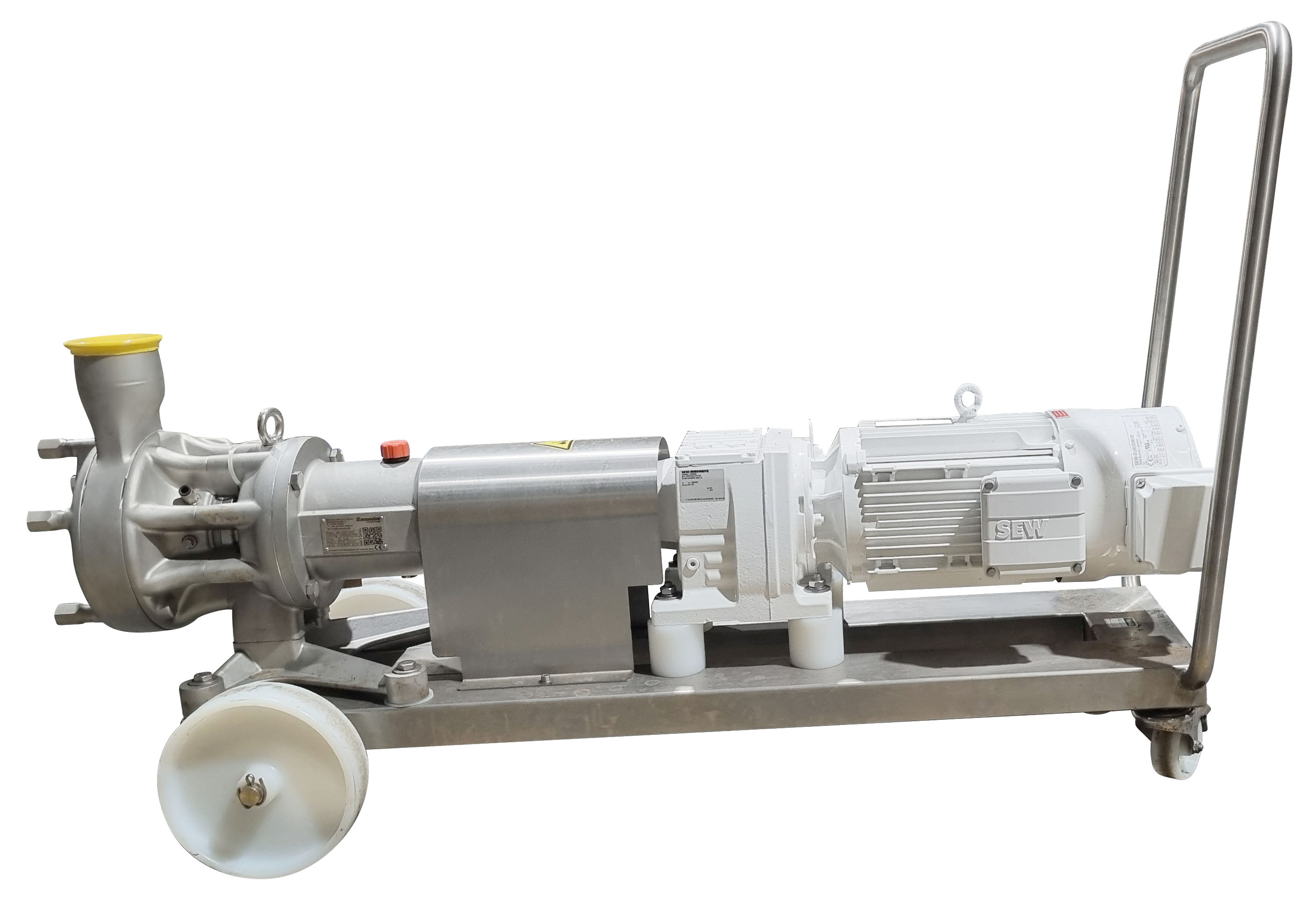

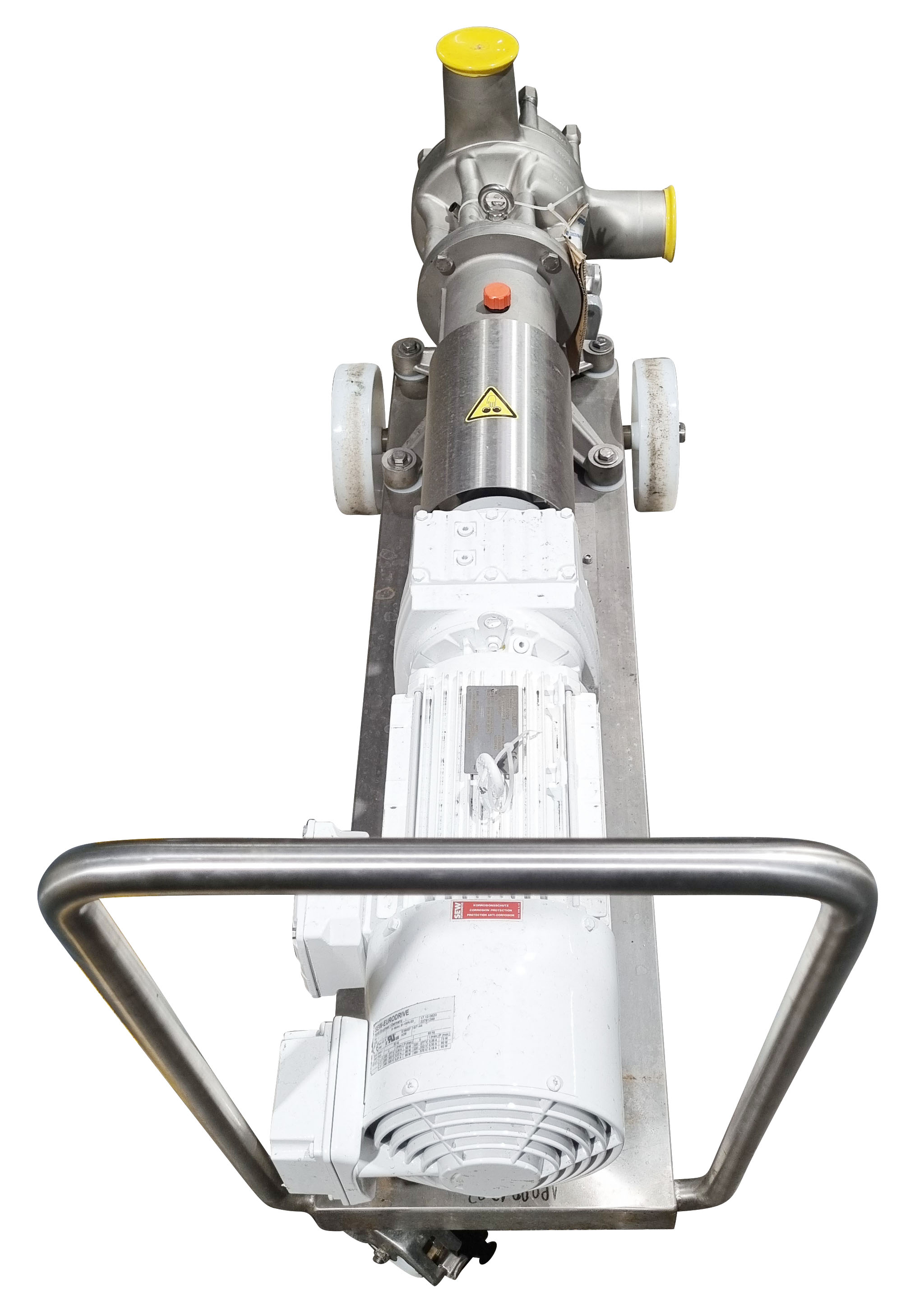

3” Stainless Steel Sine Pump – Mobile Unit with Roller Wheels
Manosine Certa 300 Sine Pump – Hygienic Process Pump for Food & Beverage
The Manosine Certa 300 sine pump is engineered for demanding hygienic applications in the food and beverage industry. It is designed to handle a wide variety of products—from high-viscosity concentrates to shear-sensitive materials—while maintaining product quality and process efficiency. Manufactured to meet strict hygiene standards, the Certa pump reduces downtime and total cost of ownership through its innovative design.

Features and Benefits
Hygienic Design
- EHEDG Type EL - Class I certified
- All product contact parts are FDA and EG1935 compliant
Virtually Pulse-Free Operation
- Provides smooth product flow without the need for additional dampeners
- Handles up to 255,000 L/h, viscosity up to 8 million cP, and pressures up to 15 bar
Low Shear Handling
- Prevents aeration and foaming, preserving product integrity
- Improves yield and maintains the sensory quality of sensitive products
Lowest Cost of Ownership
- Reduced CIP cycle time and cleaning agent consumption
- Maintenance was performed quickly onsite without removing the pump from the system
Operational Flexibility
- Bi-directional running capability
- Only one shaft and one seal system, with multiple port orientations

Technical Specifications
- Maximum Particle Size: 30 mm
- Volume per Revolution: 0.5 L
- Speed: 600 rpm
- Maximum Flow Rate: 18,000 L/h
- Maximum Pressure: 15 bar
- Maximum Temperature: 100°C
- Shaft Diameter: 50 mm
- Shaft Height: 170 mm
- Motor Speed: 1456 / 227 rpm at 50 Hz
- Weight: 124 kg

Materials of Construction
- Housing: Stainless steel 1.4404, Stainless steel 316L
- Bearing Frame: Stainless steel 1.4301, Stainless steel 304
- Rotor: A276 (CF10SMnN), A494 (CY5SnBiM), hardened and chrome plated
- Gate Materials: MWR, PA6GF30, PEEK, Polyamide, POM metal detectable, PTFE, WRP, WRP PUR-Inlay
- Seals/Gaskets: EPDM, FKM, others available on request
- Mechanical Seal: SiC/Ca-PTFE, SiC/SiC-PTFE
- Double Mechanical Seal: SiC/SiC
- Shaft Seal: PTFE, SSIC
- O-Ring Seal System: FKM
- Single Lip Seal System: PUR

Applications
The Manosine Certa 300 pump is ideal for hygienic processes involving viscous and shear-sensitive products such as orange juice concentrates, bakery mixes, deli salads, cheese curds, and savory fillings. Its gentle pumping action and hygienic construction make it suitable for food, beverage, and related hygienic industries.

Why Choose the Manosine Certa 300?
- Combining superior hygienic design with operational efficiency
- Minimizes product damage with low shear, pulse-free pumping
- Reduces energy consumption and maintenance downtime
- Supports flexible integration with various port configurations
...
Size/Capacity 3" Inlet and Outlet, 3kW 3 Phase Motor
Overall dimensions Length: 1400 mm   Width: 380 mm   Height: 850 mm
Weight 124 kg
Stock number PUMP24838S

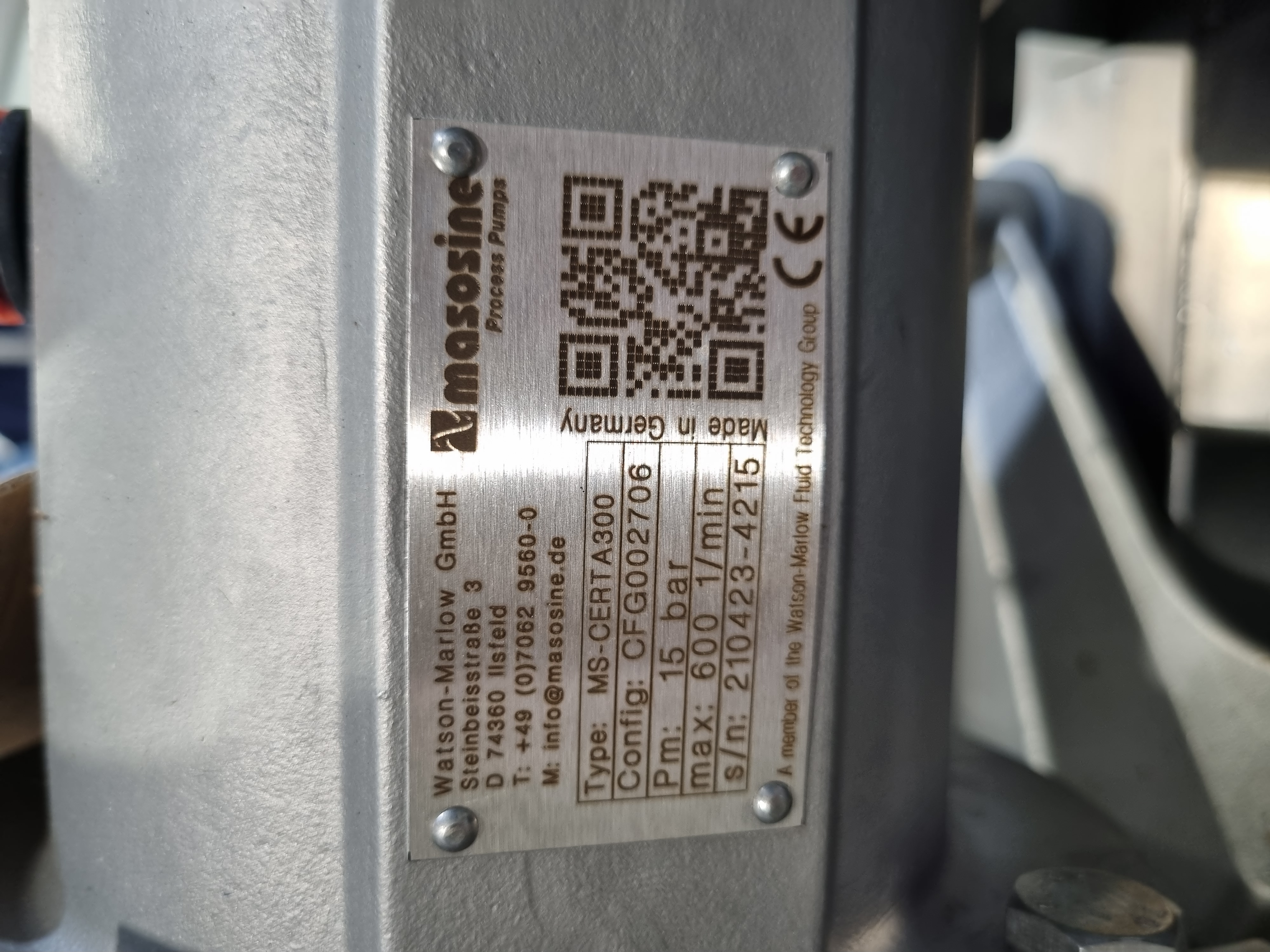

Serial number 210423-4215
Condition Used
