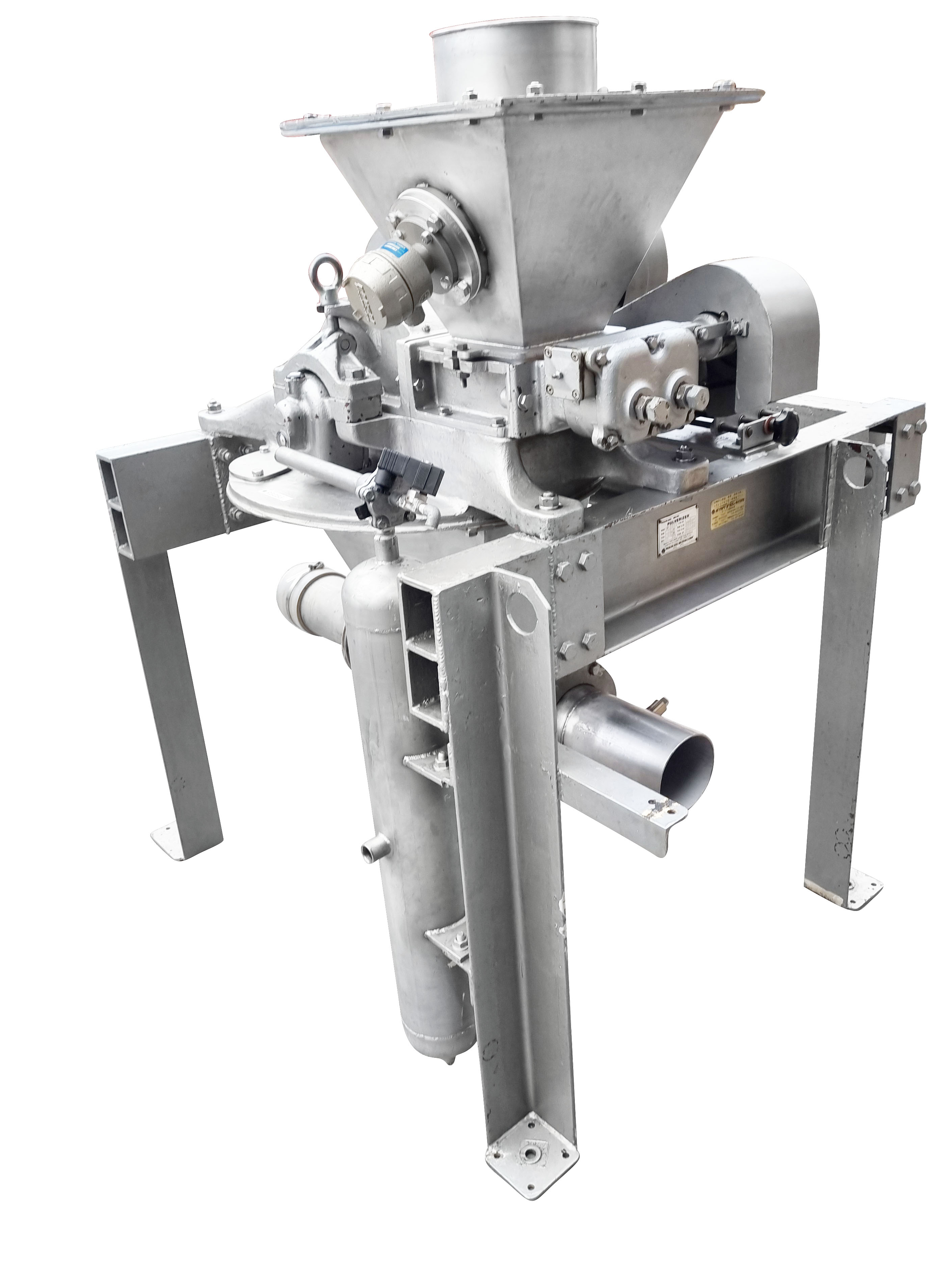

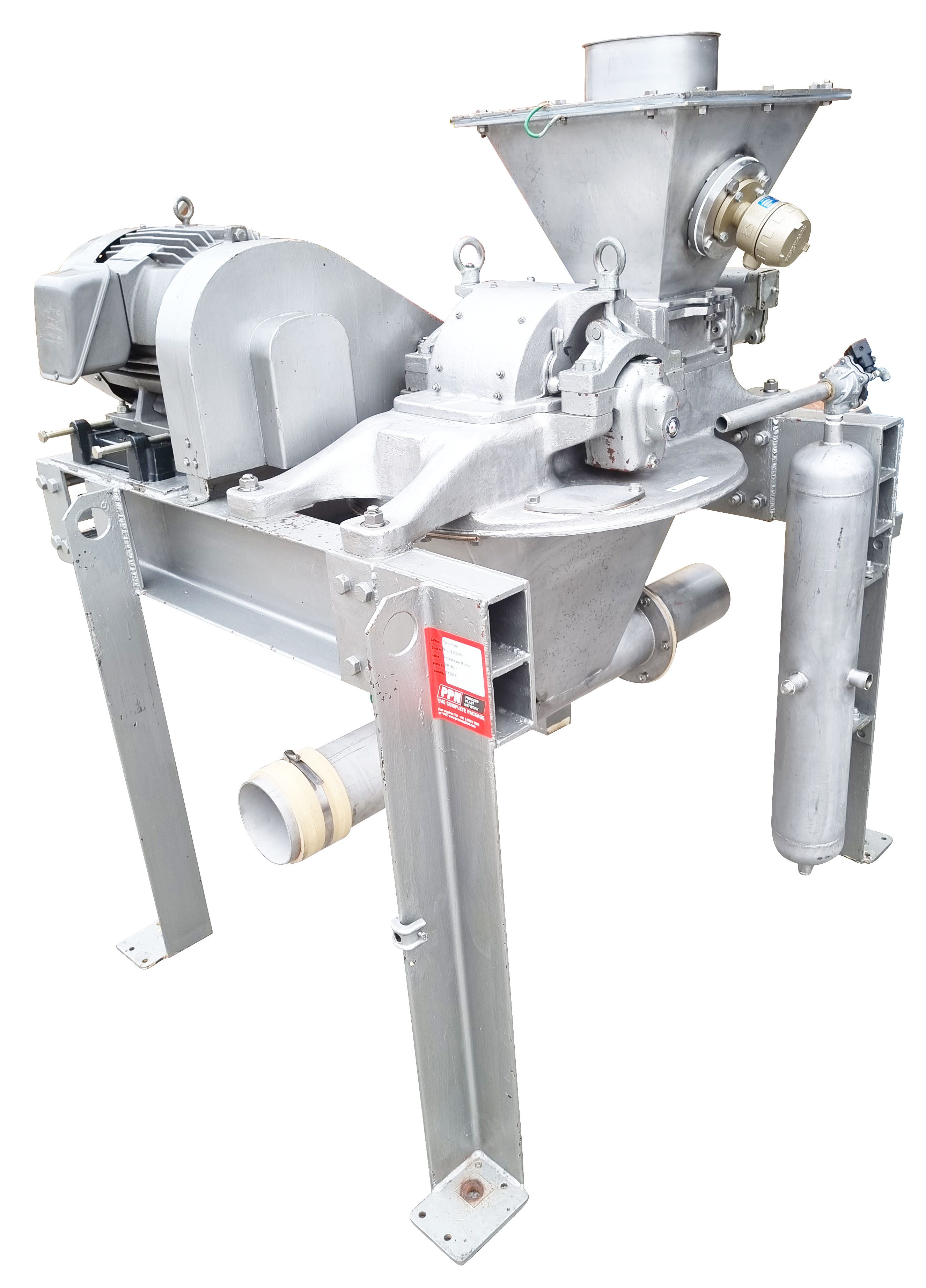

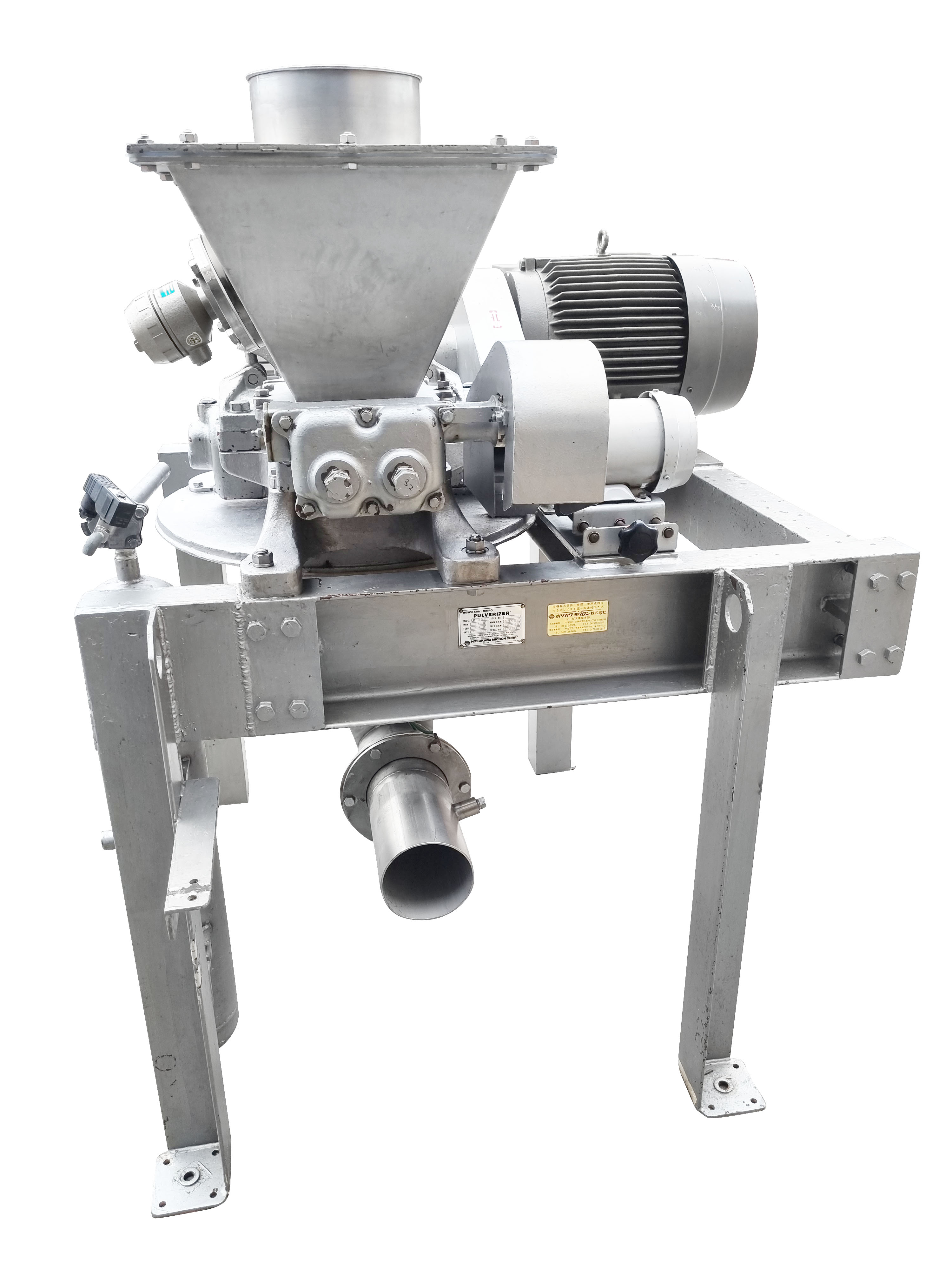

Hosokawa Micron Pulverising Mill AP-2DH

The Mikro Pulverizer hammer & screen mill is a high speed impact mill that can be used for grinding a wide range of materials. The raw material is ground by the strong impact force generated from the swing hammer reaching circumferential speeds of 100m/s and the impact of the liner. The particle top size is controlled by a replaceable retainer screen. Different screen options can produce materials down to 45 microns.

Principle

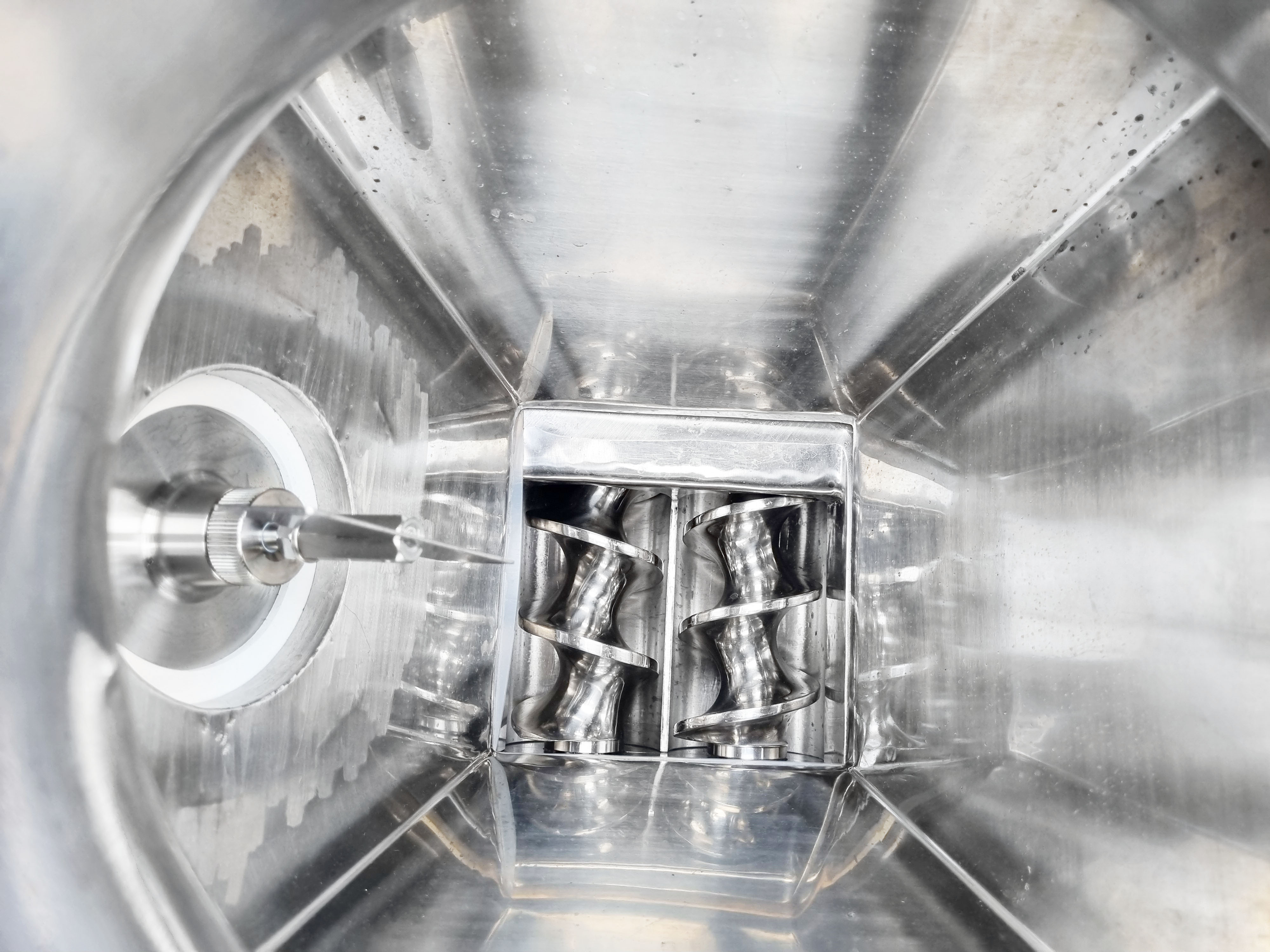

The built-in swing hammer consists of the standard stirrup hammer and the knife hammer, which limits the generation of fine particles. Taw material is fed into the grinding chamber using a screw, then is impacted by the rotating hammers resulting in finer materials. The deflector liner at the top of the grinding zone slows the peripherally speed of the particles and deflects them back into the path of the hammers. As particles become fine enough, the pass through the retaining screen at the bottom of the grinding chamber and are collected. The Mikro Bantam Mill AP-B has the same orientation and is used for small-scale production. For larger models a pneumatic conveying chute is attached and a bag filter collects the product. By installing a classifier after the Mikro Pulverizer, the top-size of the product can be controlled allowing for products with a sharper particle distribution.

Features
- Continuous operation allows for high capacity milling of a wide range of materials.
- Particle top size can be easily controlled by changing the retainer screen.
- Designed for quick disassemble for cleaning and maintenance.
- Durable construction for long service life.

5,750 rpm for Main
30 - 49 rpm for Feed
Motor Size for Main: 11 kW
Motor Size for Feed: 0.4 kW
Price includes 2 x new motors, mechanical service and 6 month warranty. Prices EXCLUDES control panel and safety as well as blower, in-feed, cyclone and dust extraction (can be priced separately).
...
Model AP-2DH
Size/Capacity 5,750 rpm Main
30 - 49 rpm Feed
Overall dimensions Length: 1200 mm   Width: 1300 mm   Height: 1200 mm
Stock number MILL23629S
Serial number 372211
Condition Used
Year of manufacture 1987
