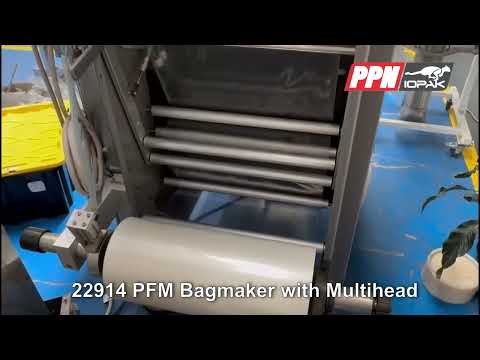

PFM Bagmaker with Multi-head weigher ZC1
PFM ZC1 Integrated solution

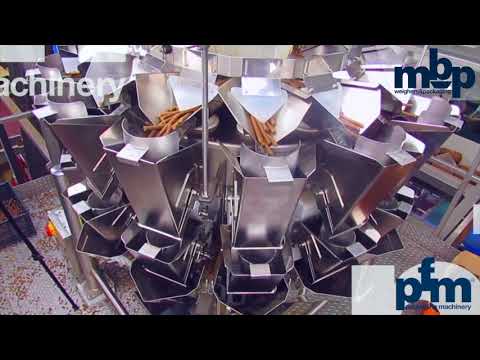

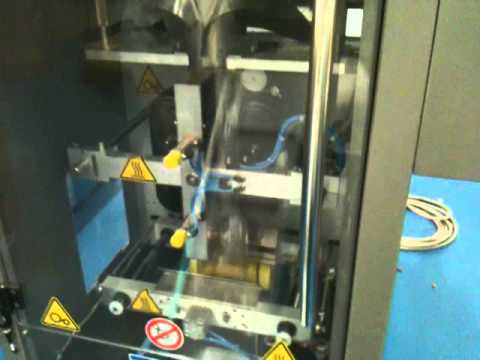

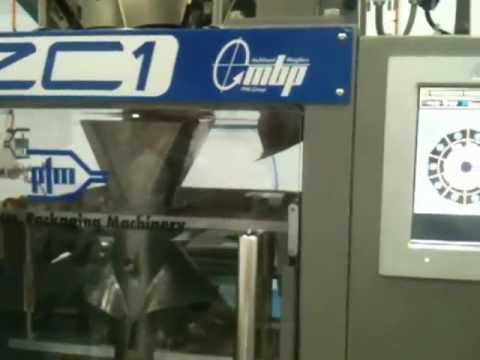

The ZC1 integrated solution optimises the weigher-packaging machine combination by making the most of the Series C1 multihead weigher and the model Zenith vertical packaging machine, which produces pillow packs with three seals and square bases or Steelo Packs (4 side seals). The ZC1 offers high quality standards which translate into high weighing accuracy, aesthetically perfect packs with easy maintenance, programming and operating safety over time.
Features:
Structure: compact, designed to house the 10 and 14-head versions of the Series C1 multi-head weigher. The particularly rigid structure is designed to eliminate vibration and thereby optimise operation of the multi-head weigher.
Hygiene: the ZC1 has been studied in every detail to facilitate cleaning and sanitisation operations.
Flexibility: the ZC1 enables quick and easy format changeovers. The weigher’s software features enable the machine to learn its own parameters thereby reducing intervention time by the operator who only needs to enter data relating to weight and speed. Extremely short packaging machine forming box and reel replacement times. The particularly advanced software guides the operator through the entering of required data
Machine Features
- Structure “Hermetic Box” type steel frame protected against the infiltration of dust.
- Control of functions through PLC (latest generation microprocessor).
- Drawing of wrapping material by self-centring “pulling belts” with pneumatic opening.
- Control of packaging length using photocell system with print registration system.

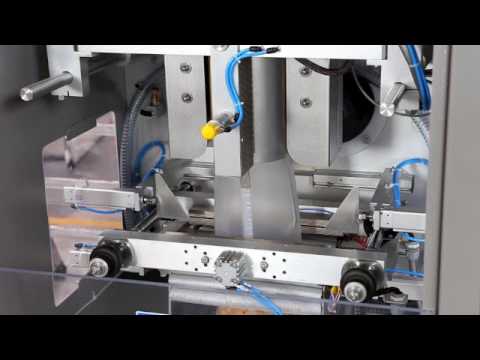

- Sealing jaws constructed steel with limited size variation.
- Easily interchangeable forming box.
- Self-centring reel-holder shaft.
Technical data for basic ZC1
Pack length: 80-300mm
Pack width: 230-330mm
Reel width: 500-700mm
Reel diameter: 350mm
Packaging material: BOPP, PE
Output: 120 cycles/min
Sealing system: INT
Weight: 1000kg
Power: 380V, 5A
Other data:
Crimper width: 250mm
Production speed: 60ppm
Flat bag dimensions: 230mm L - 300mm H
Max volume: 4L
Bucket Elevator:
Motor: 0.75kW
Size: 3400mm L x 650mm W x 3910mm H DOM: 2010-10-23
Electrics: 380V, 2.5A, 50Hz,
Serial: 10698 B
OEM website: https://www.mbp.it/en/
All documentation available.
|
Model
|
ZC1
|
|
Overall dimensions
|
Length: 1900 mm Width: 1280 mm Height: 2850 mm
|
|
Stock number
|
MATH22914S
|
|
Condition
|
Used
|
