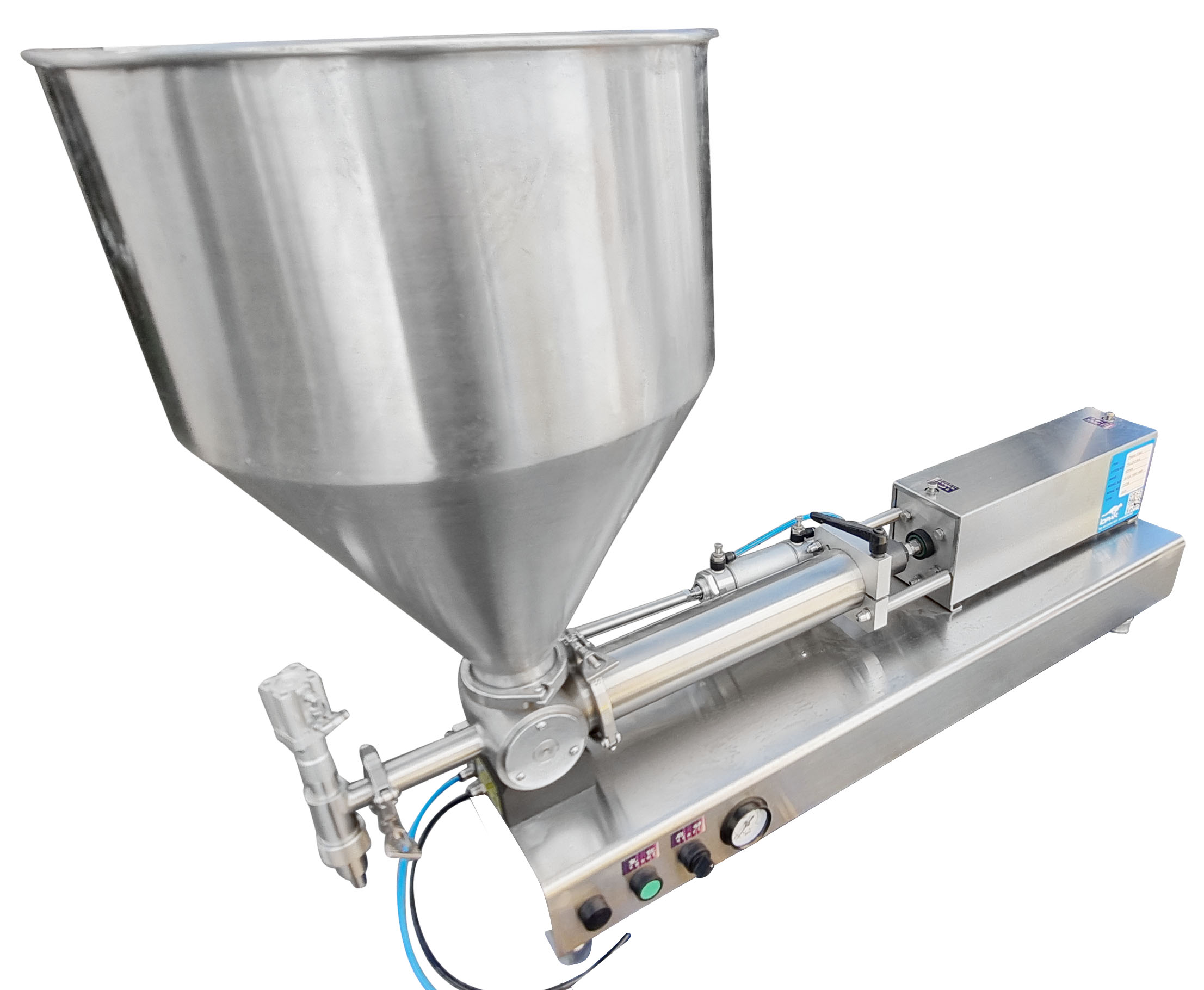

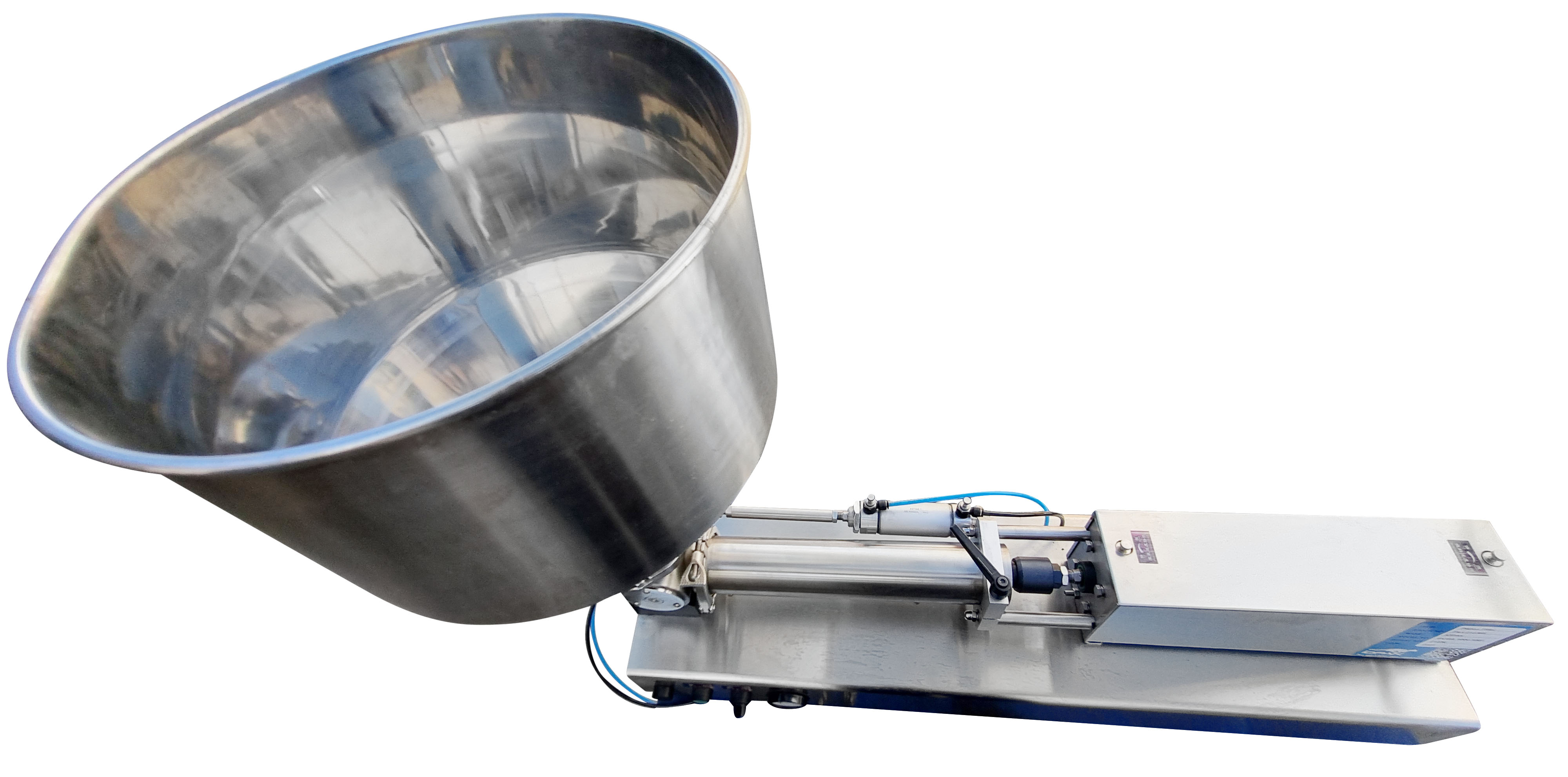

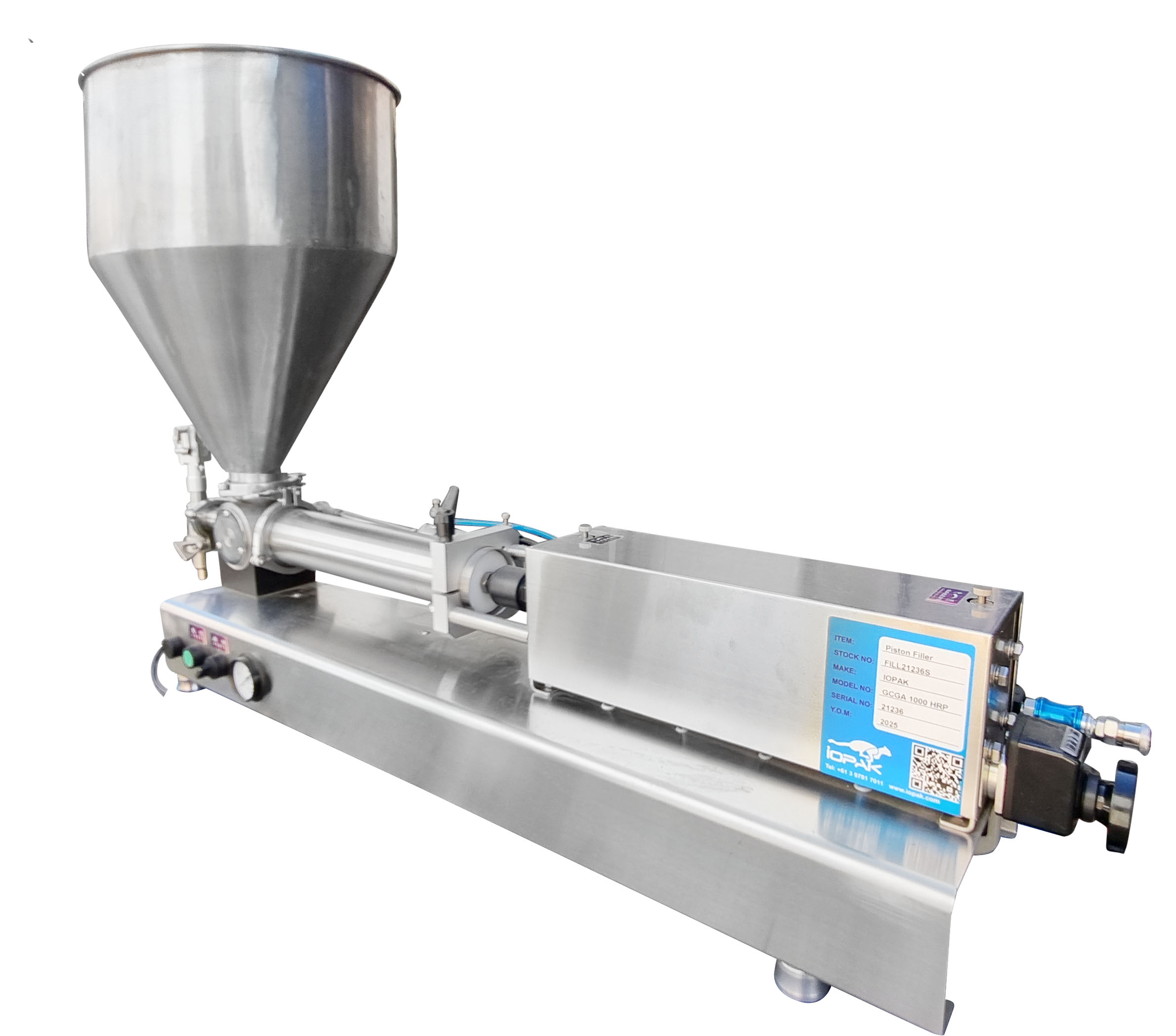

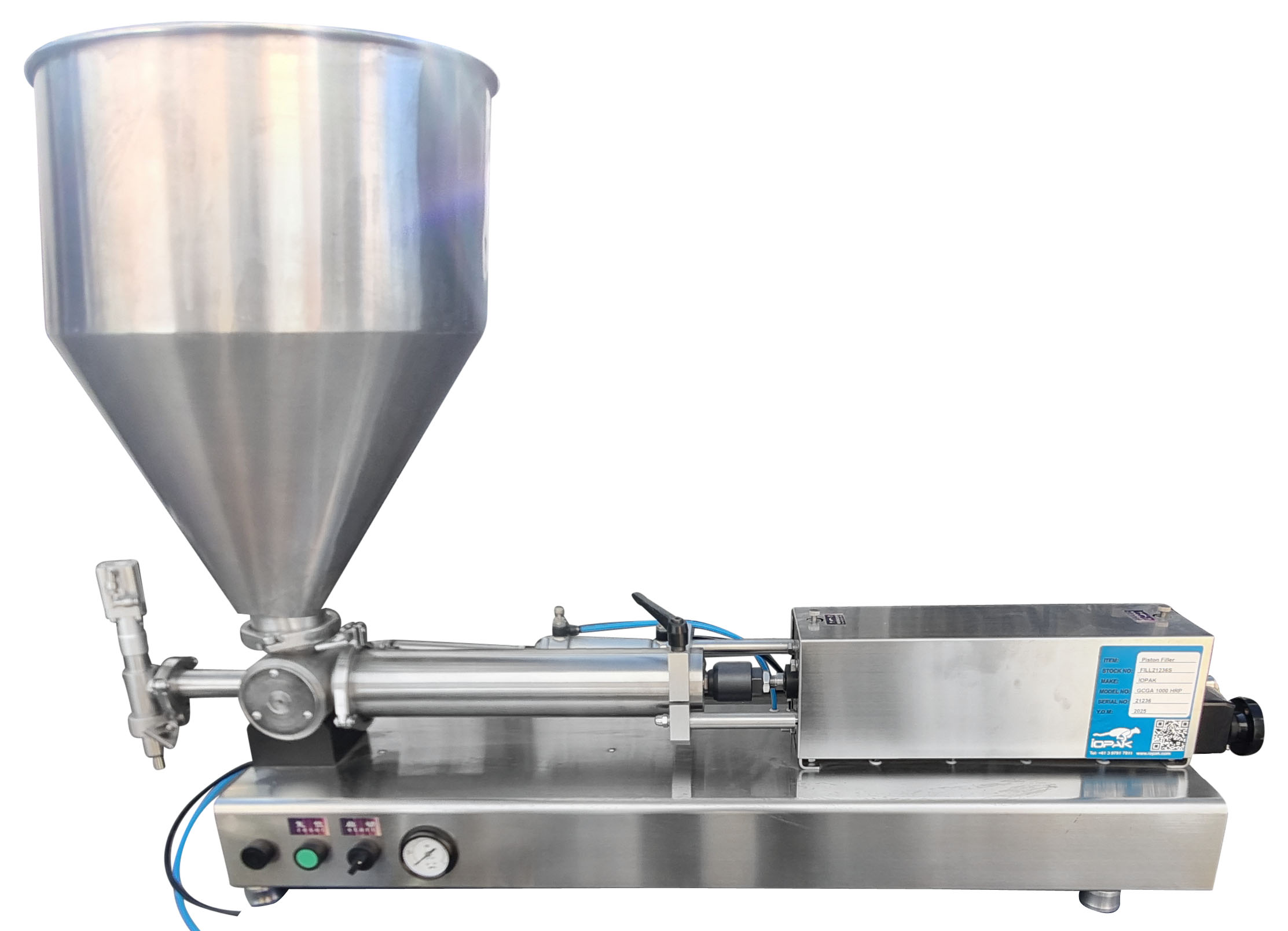

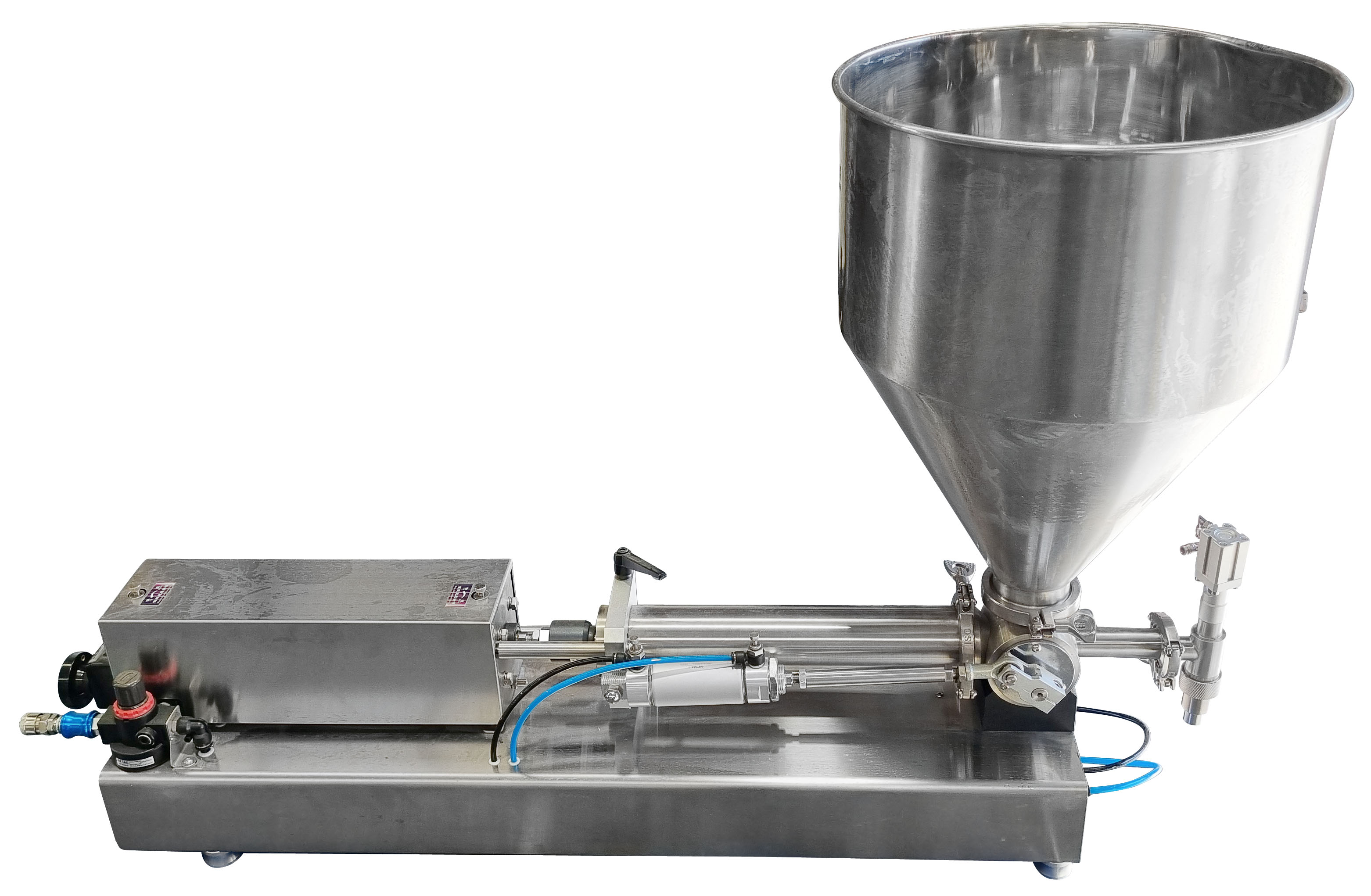

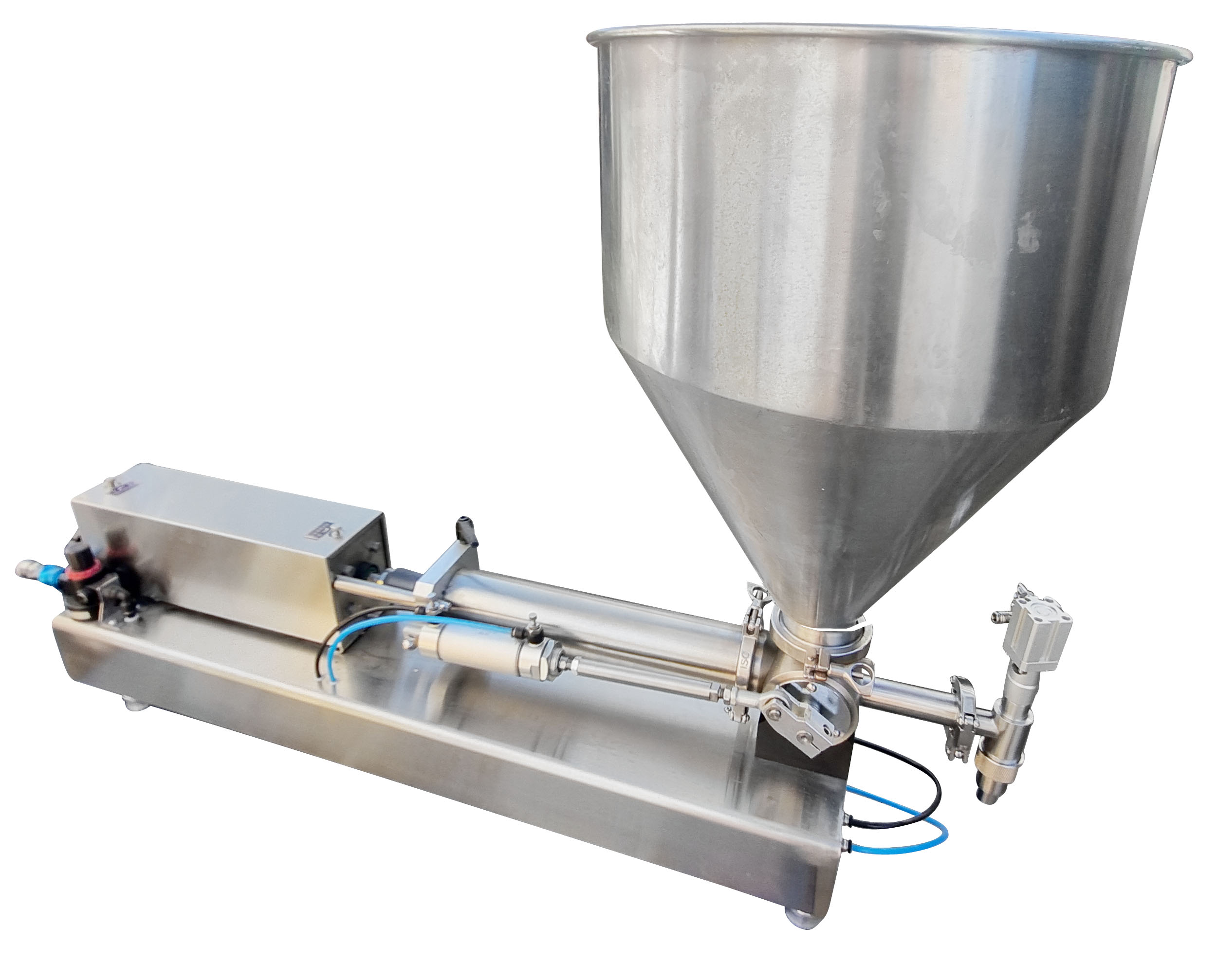

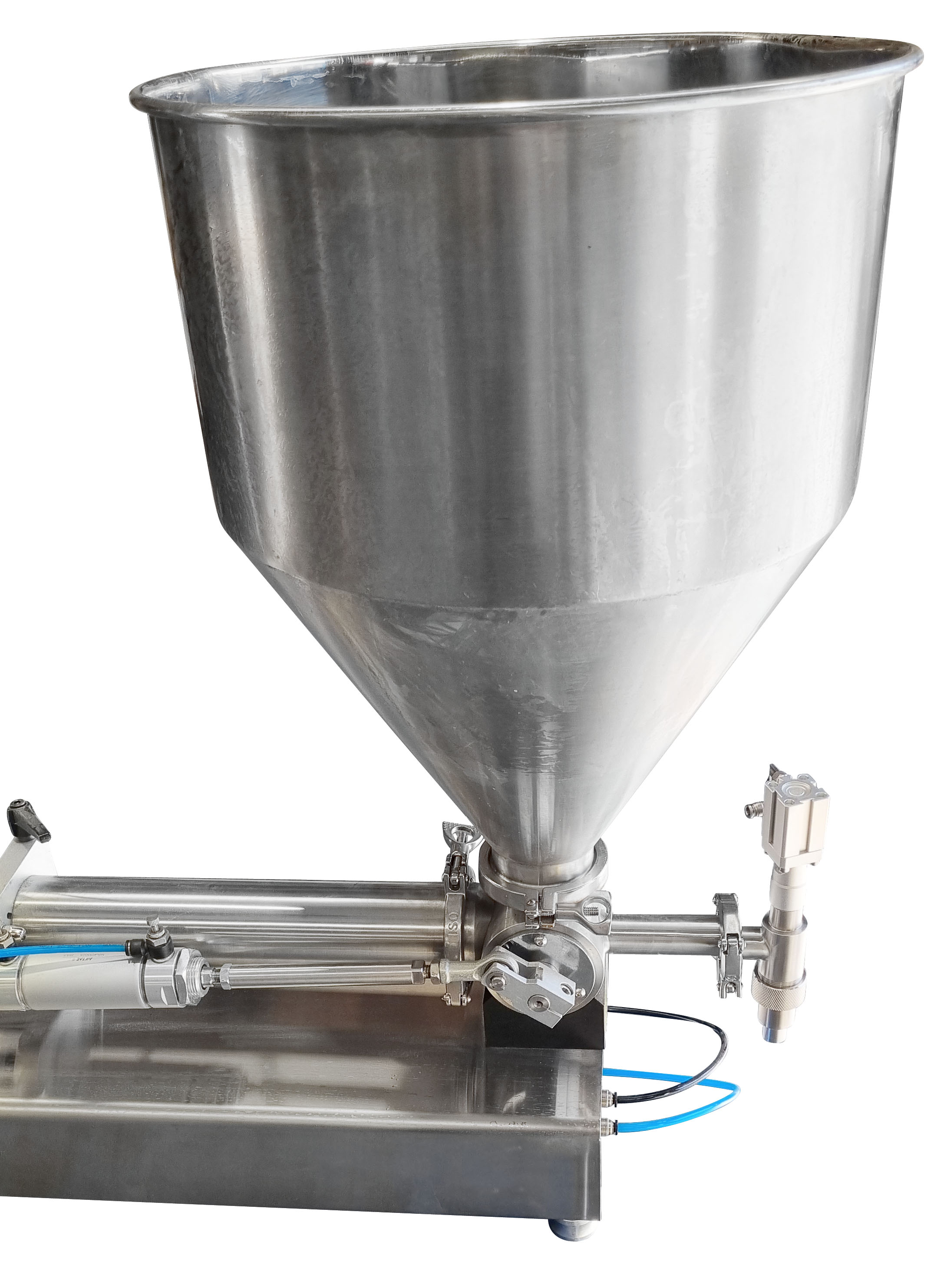

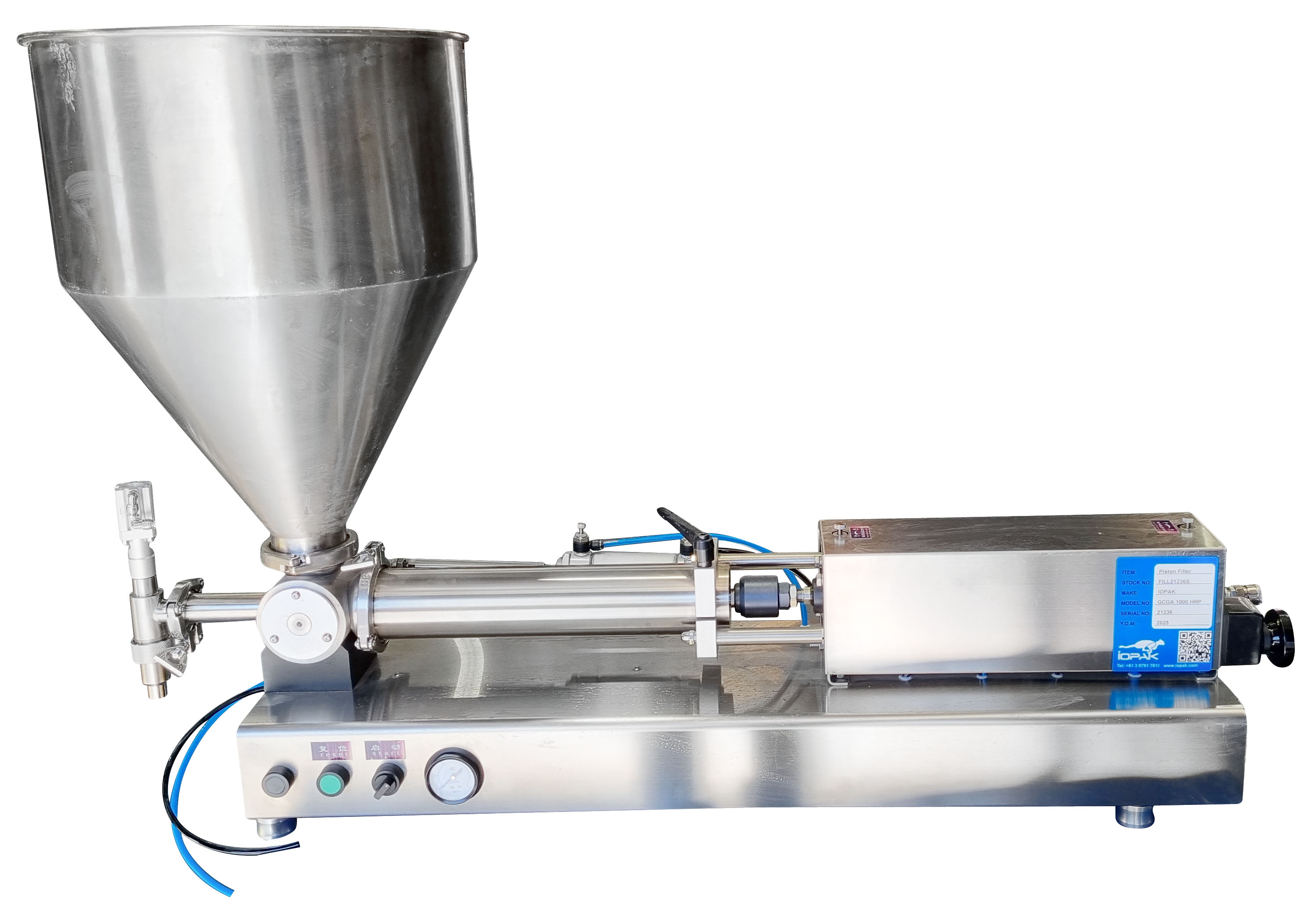

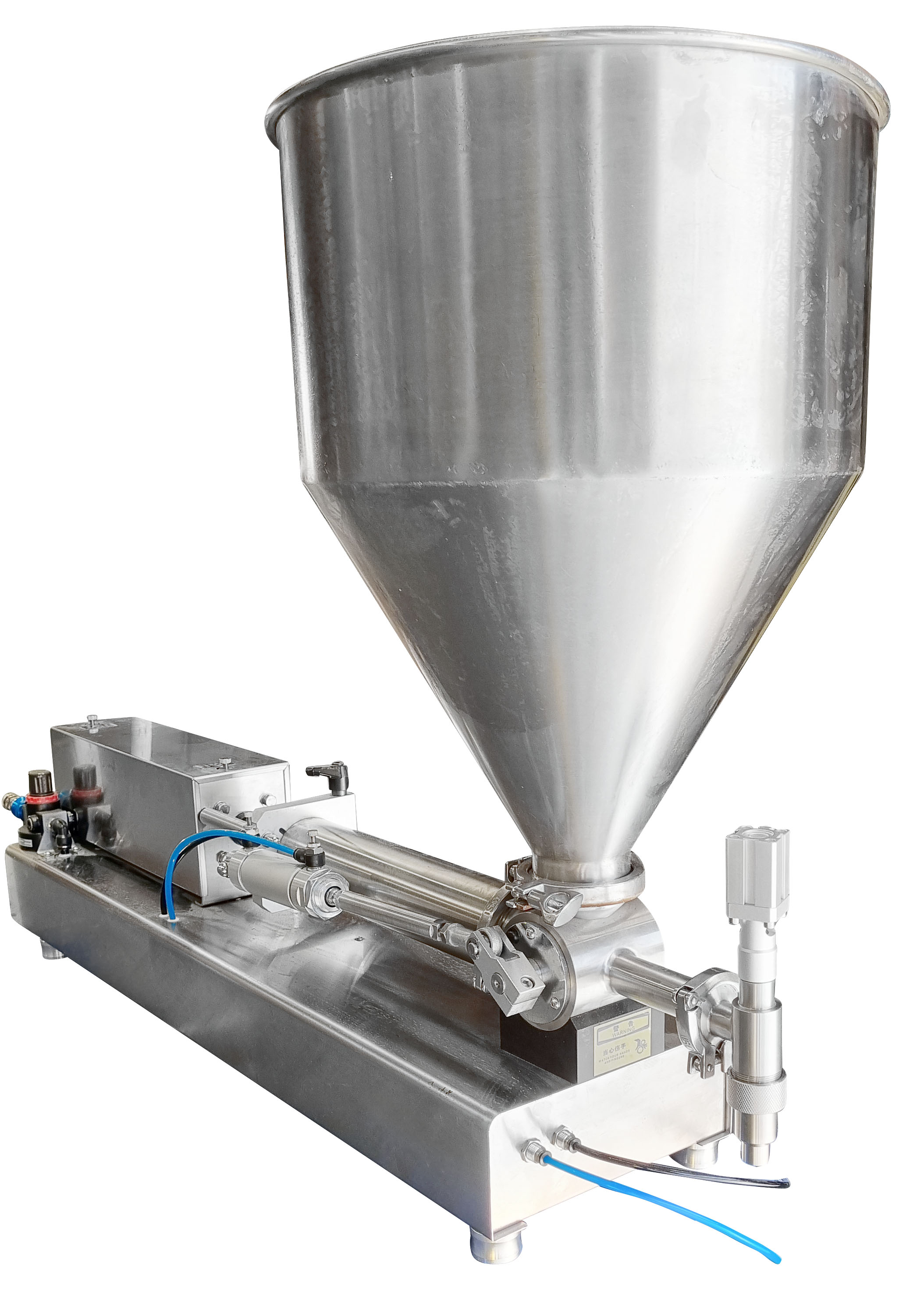

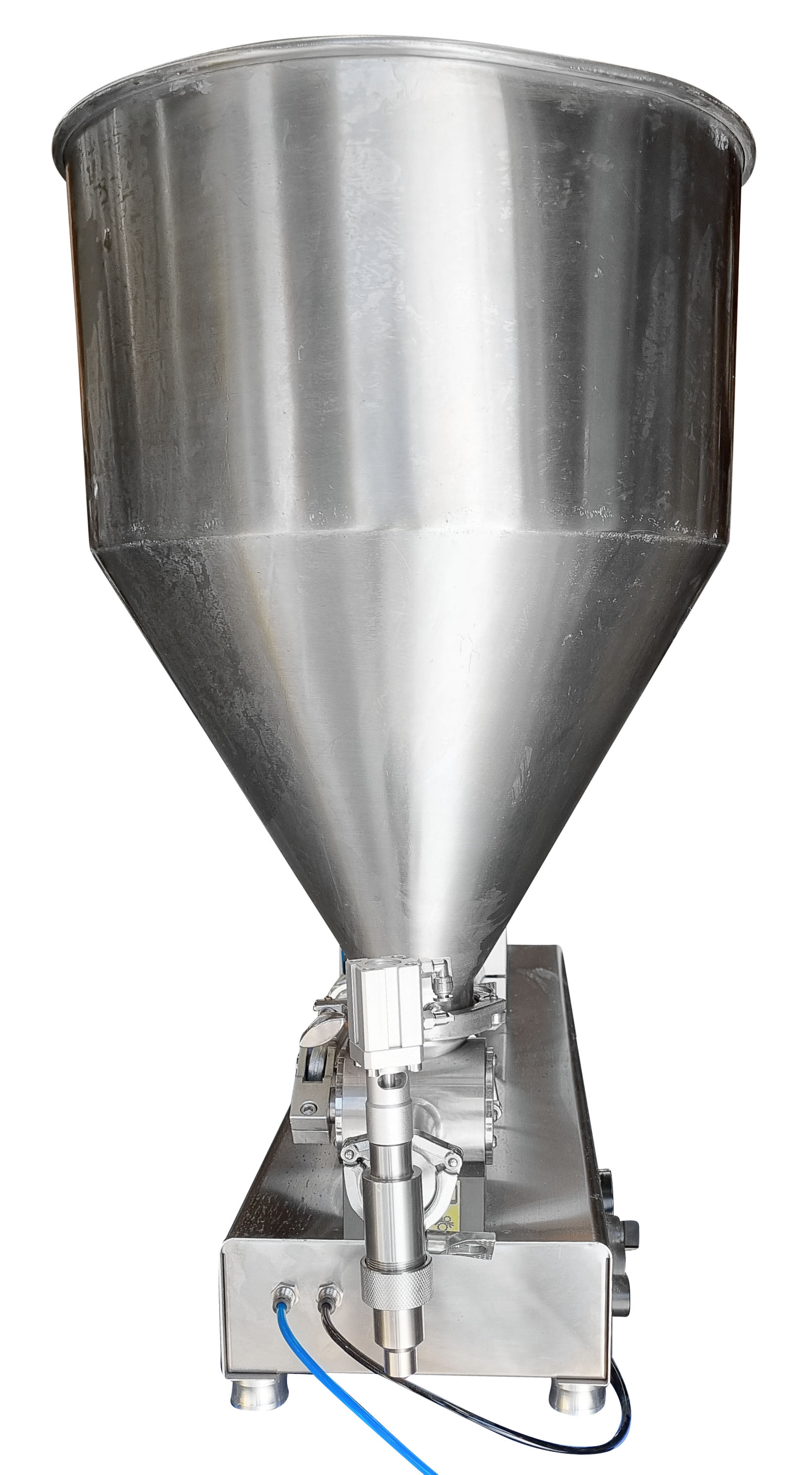

IOPAK GCGA 1000 HRP Piston Filler

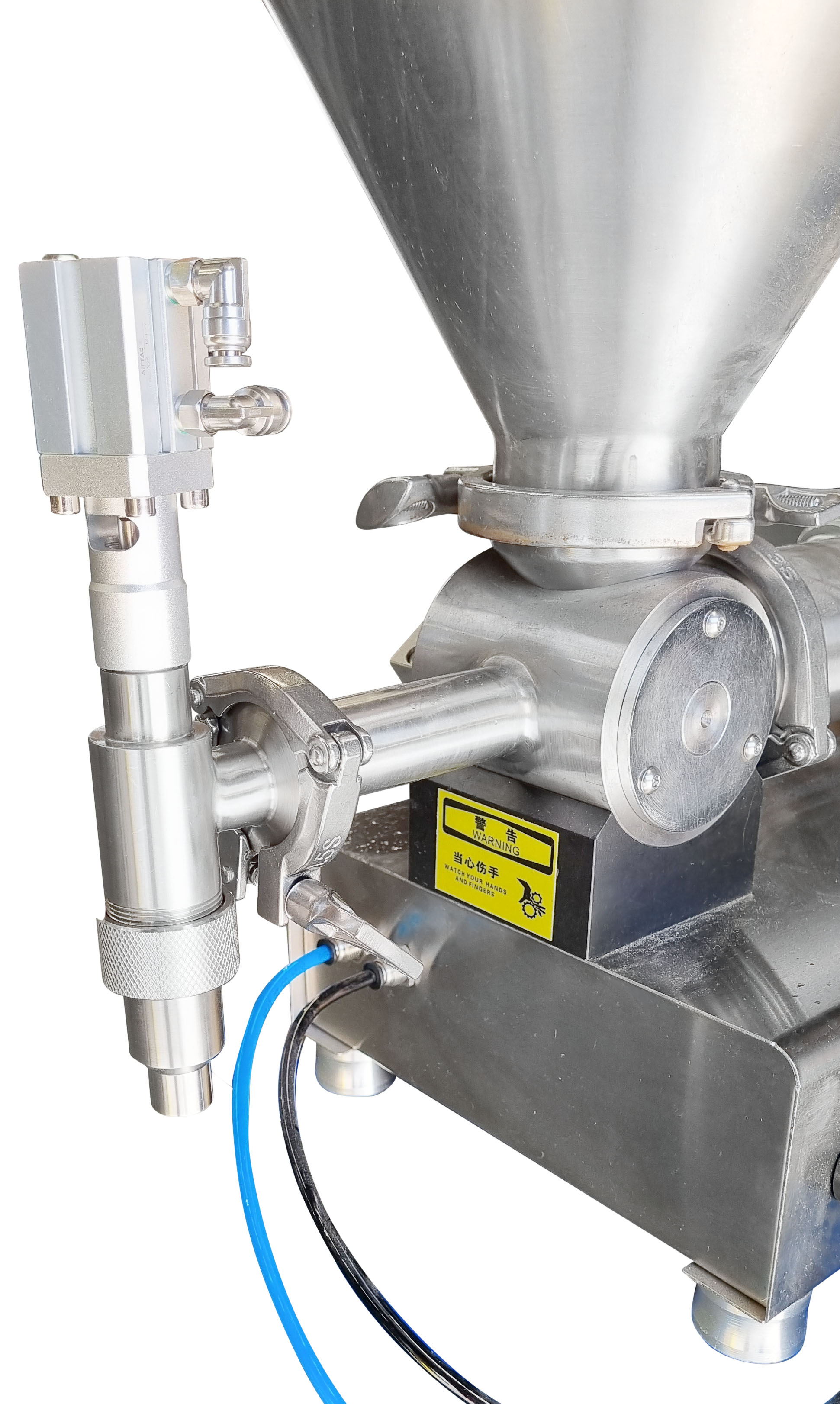

Rotary valve configuration

The machine incorporates a rotary valve system that enables smooth control of product flow during filling cycles. This configuration supports a wide range of viscosities and helps maintain consistency between doses. It also prevents product leakage and reduces turbulence, especially in thick or particulate-rich foods.

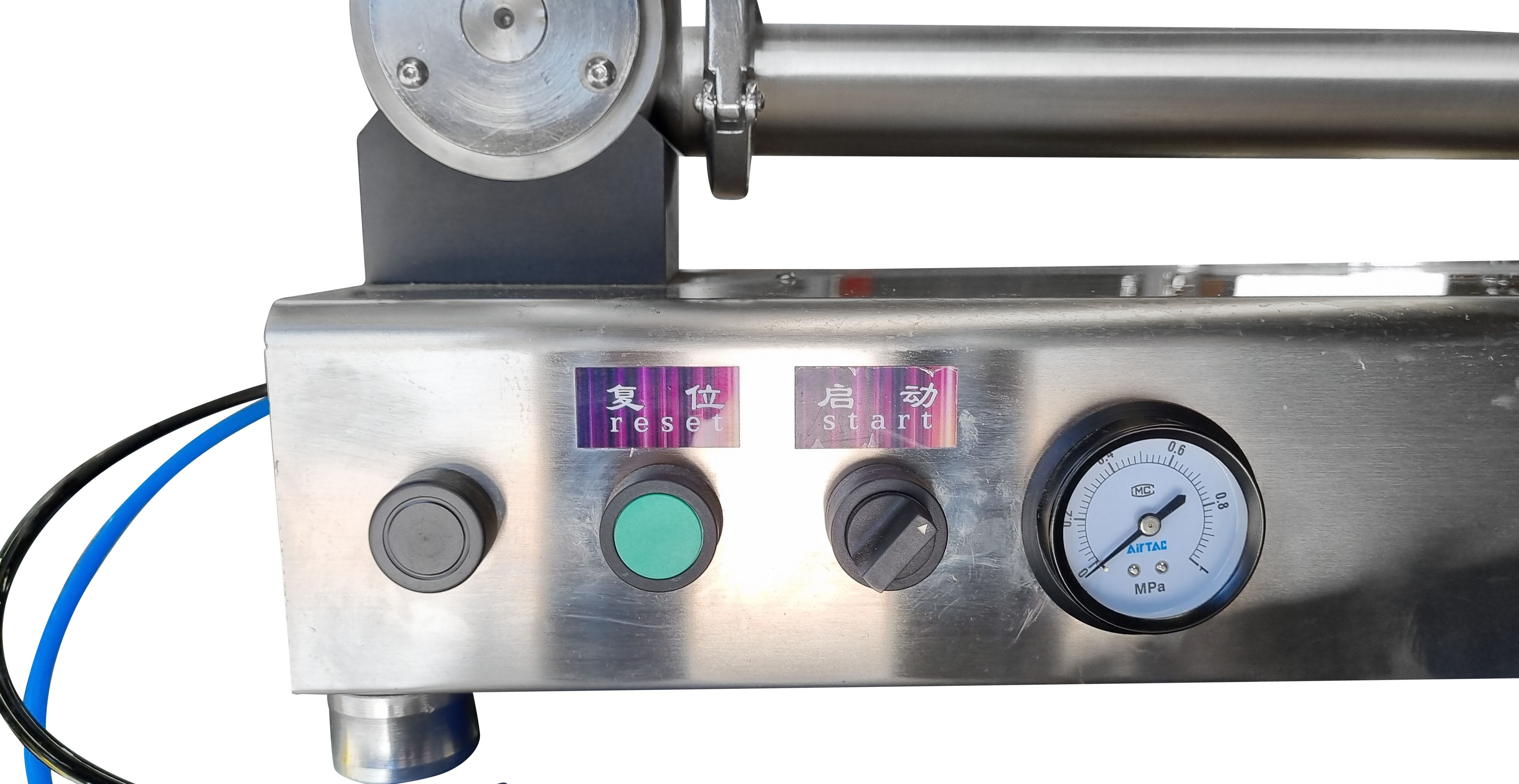

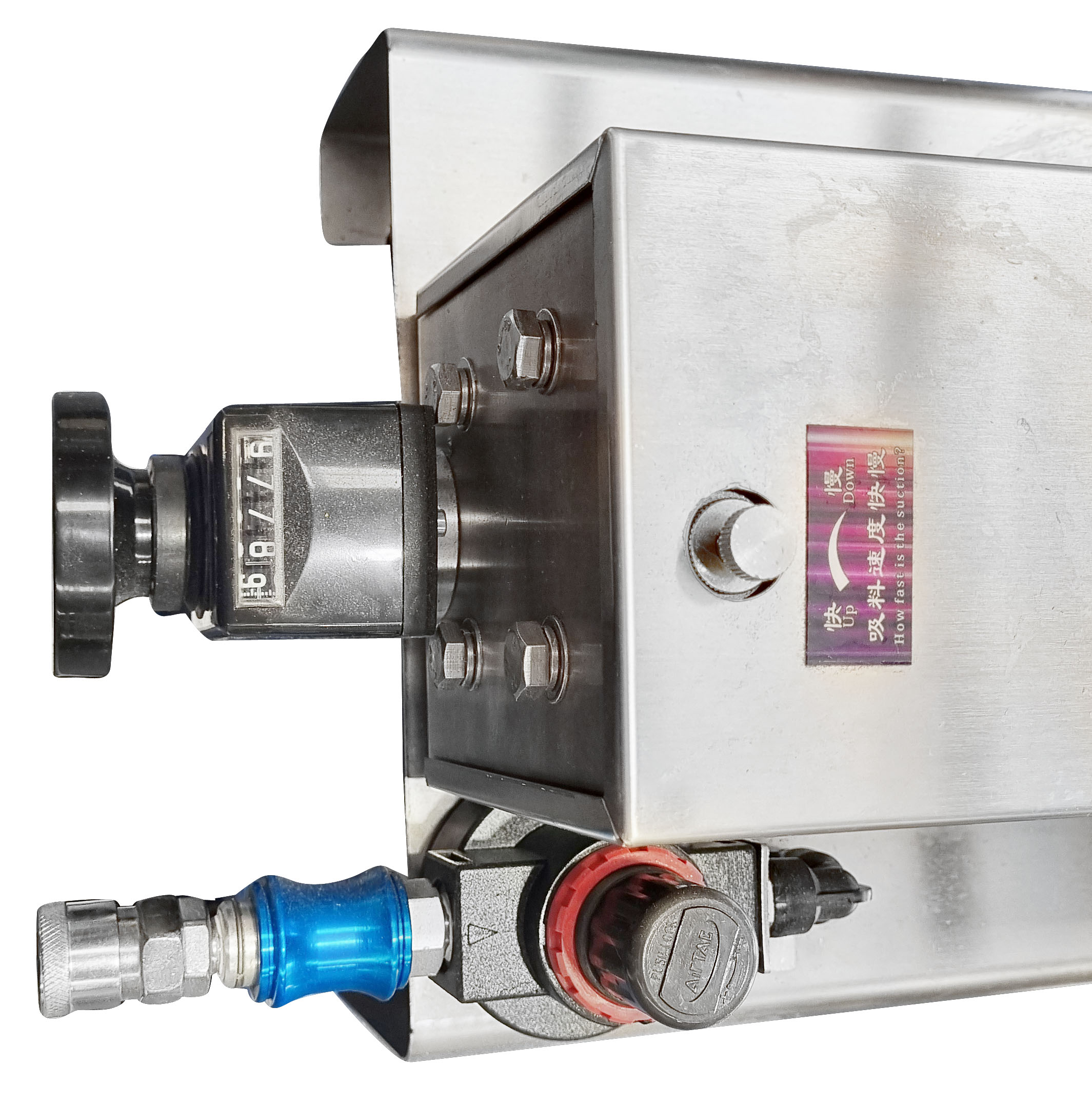

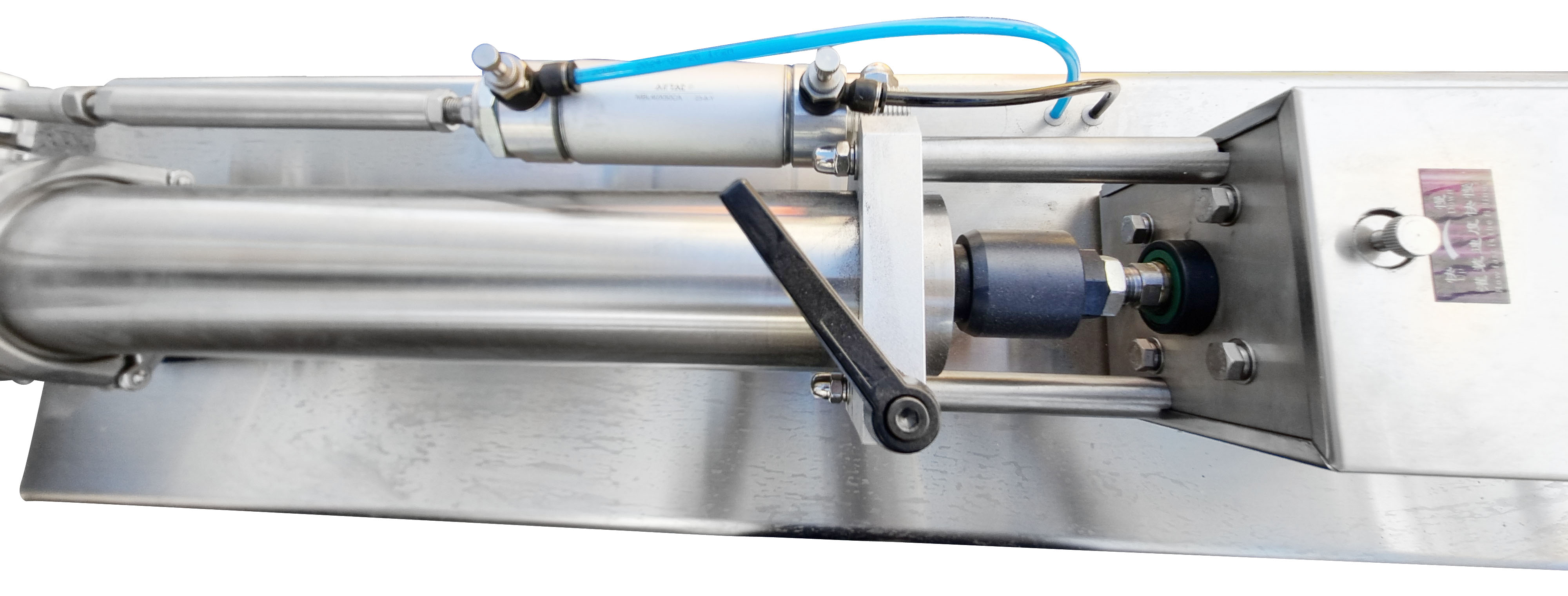

Pneumatic drive and control

This filler is fully pneumatic, using compressed air to power all fill functions. The absence of electrical components allows the unit to be operated in wet or washdown environments. The cylinder’s mechanical positioning system stabilizes the piston motion, improving dosing accuracy and repeatability.

Food-grade stainless steel construction

All product contact components are manufactured from SUS316 stainless steel, selected for its corrosion resistance and food safety compliance. The remaining construction is SUS304, offering strength and ease of cleaning. These materials meet hygienic standards and allow for fast sanitation during changeovers.

Options

The piston filler can be fitted with the following optional features:

• Alternate nozzle sizes for different containers
• Drip-free nozzle upgrade
• Foot pedal actuation switch
• Hopper with level sensor
• Heated hopper for temperature-sensitive fills
• Stand frame with adjustable height
• Two-head model for increased output
• Bottle or container locator fixture
• Air filter/regulator assembly
