Tosei Dumpling Production Line A-16NAL

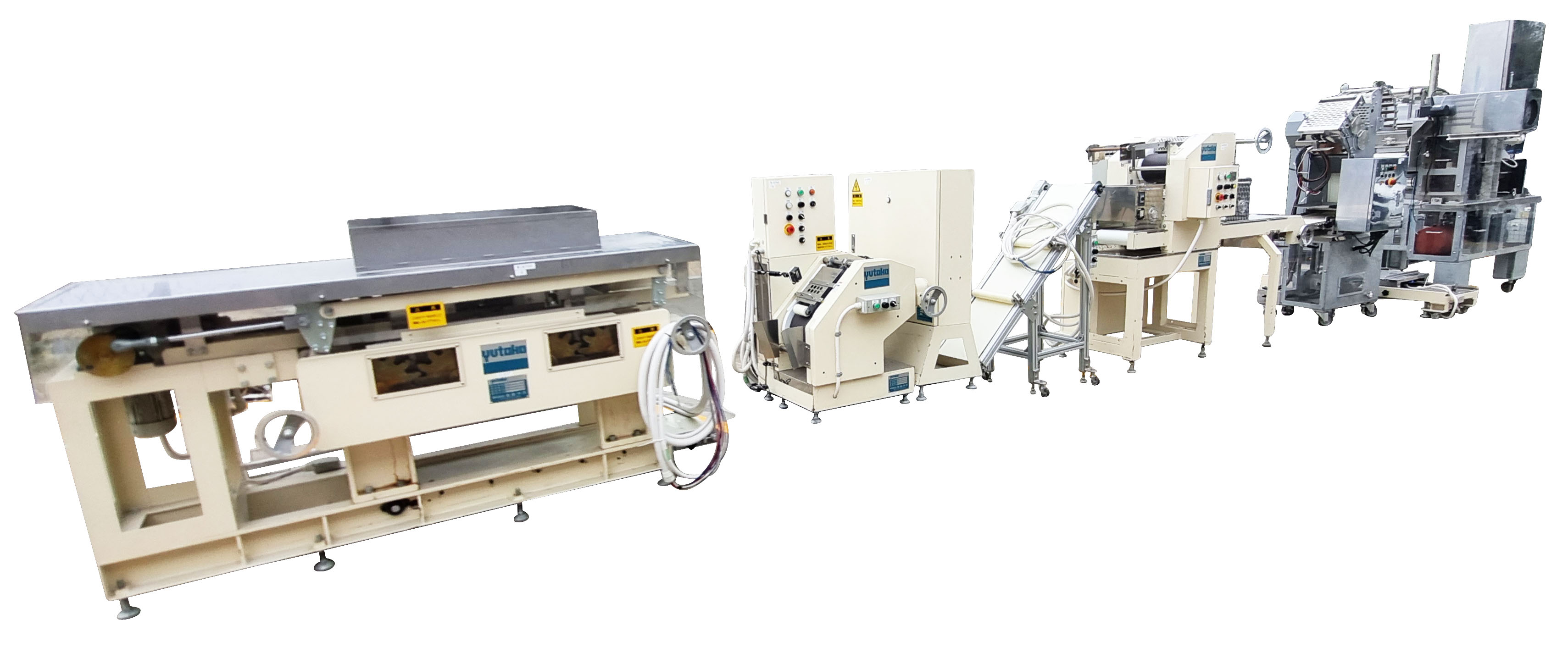

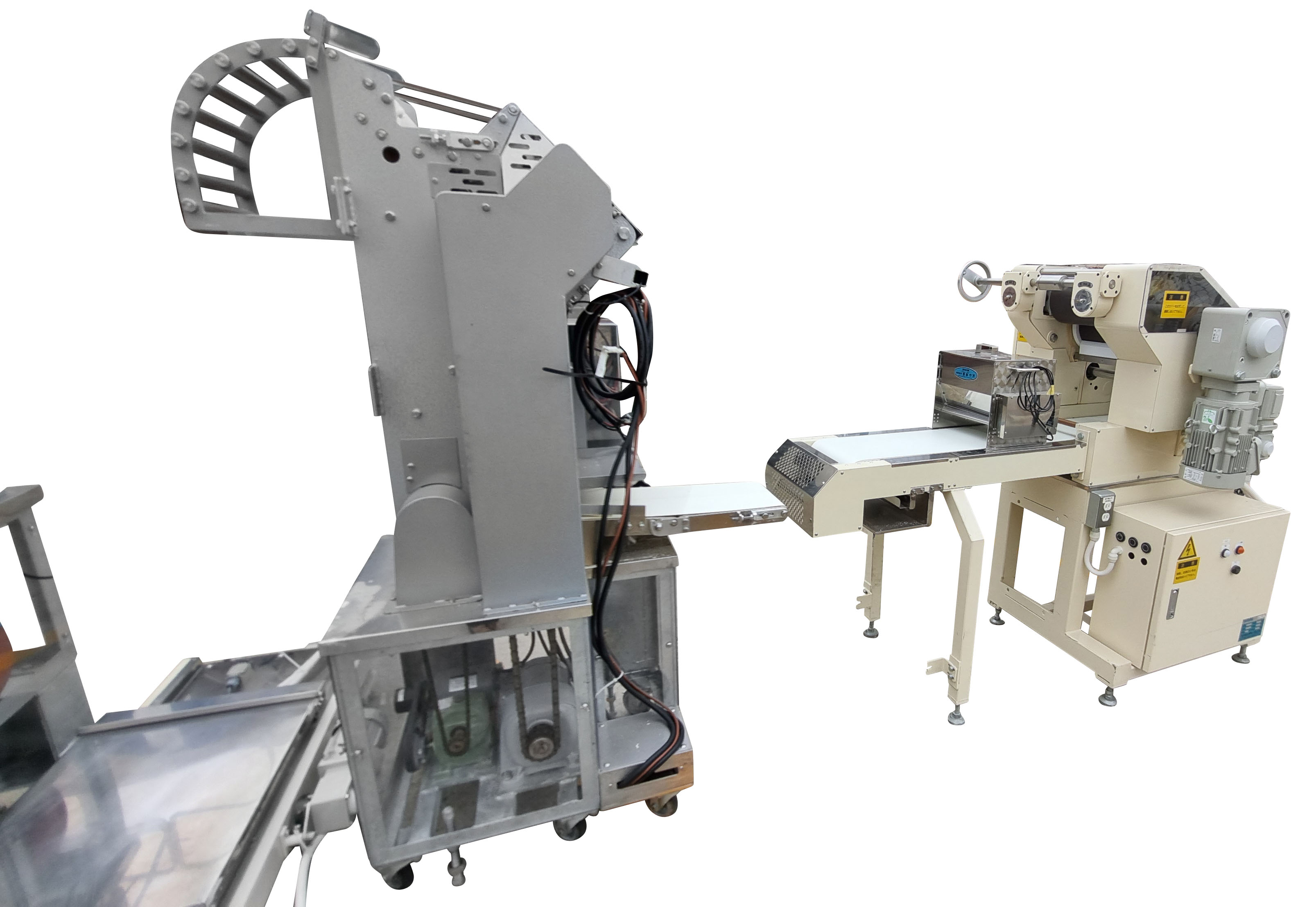

Fully Automated Dumpling Production Line
This comprehensive dumpling production line combines advanced equipment for seamless automation, efficient operation, and consistent product quality. Perfect for high-volume production in commercial kitchens and food manufacturing facilities.

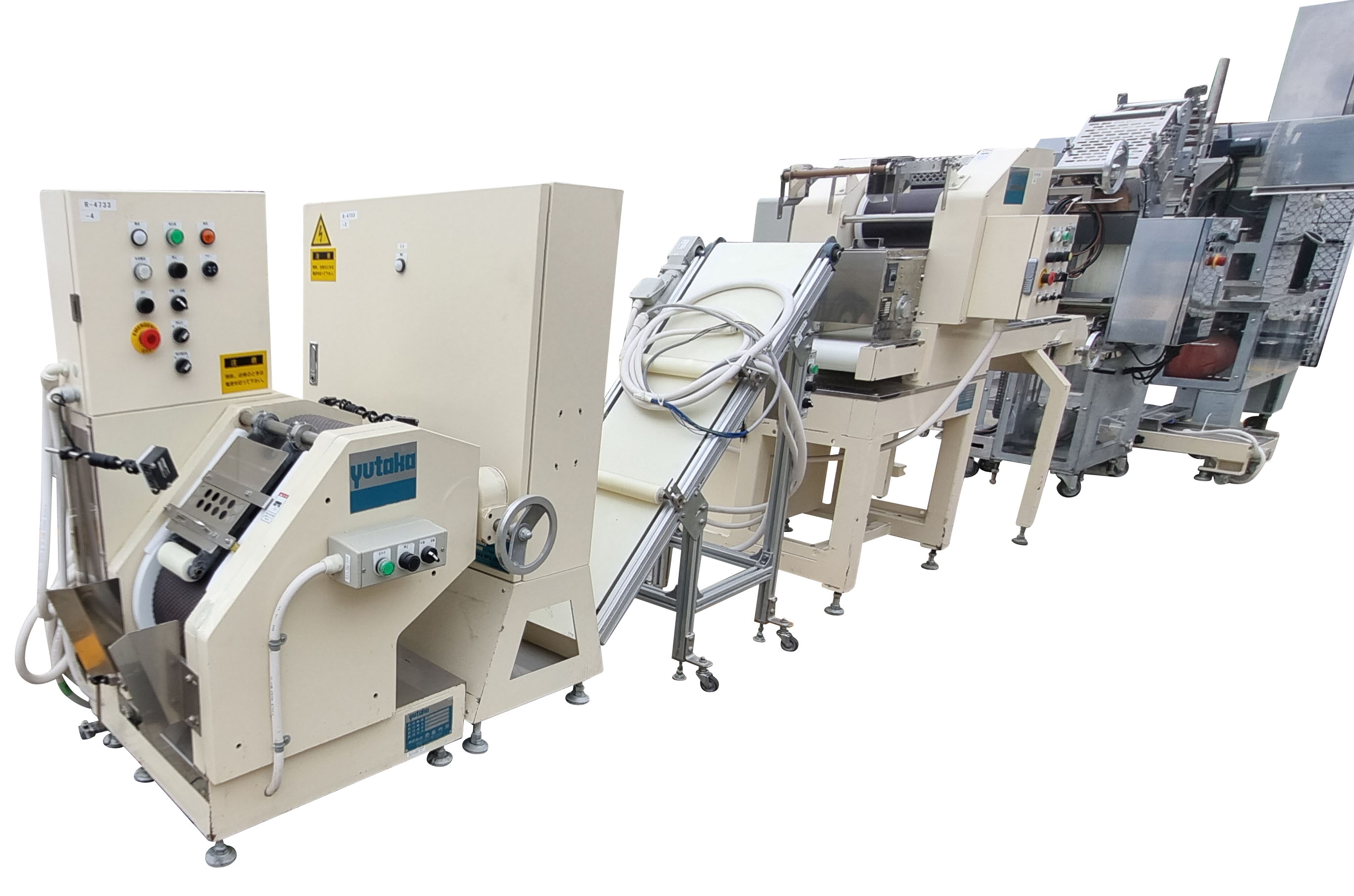

Line Components

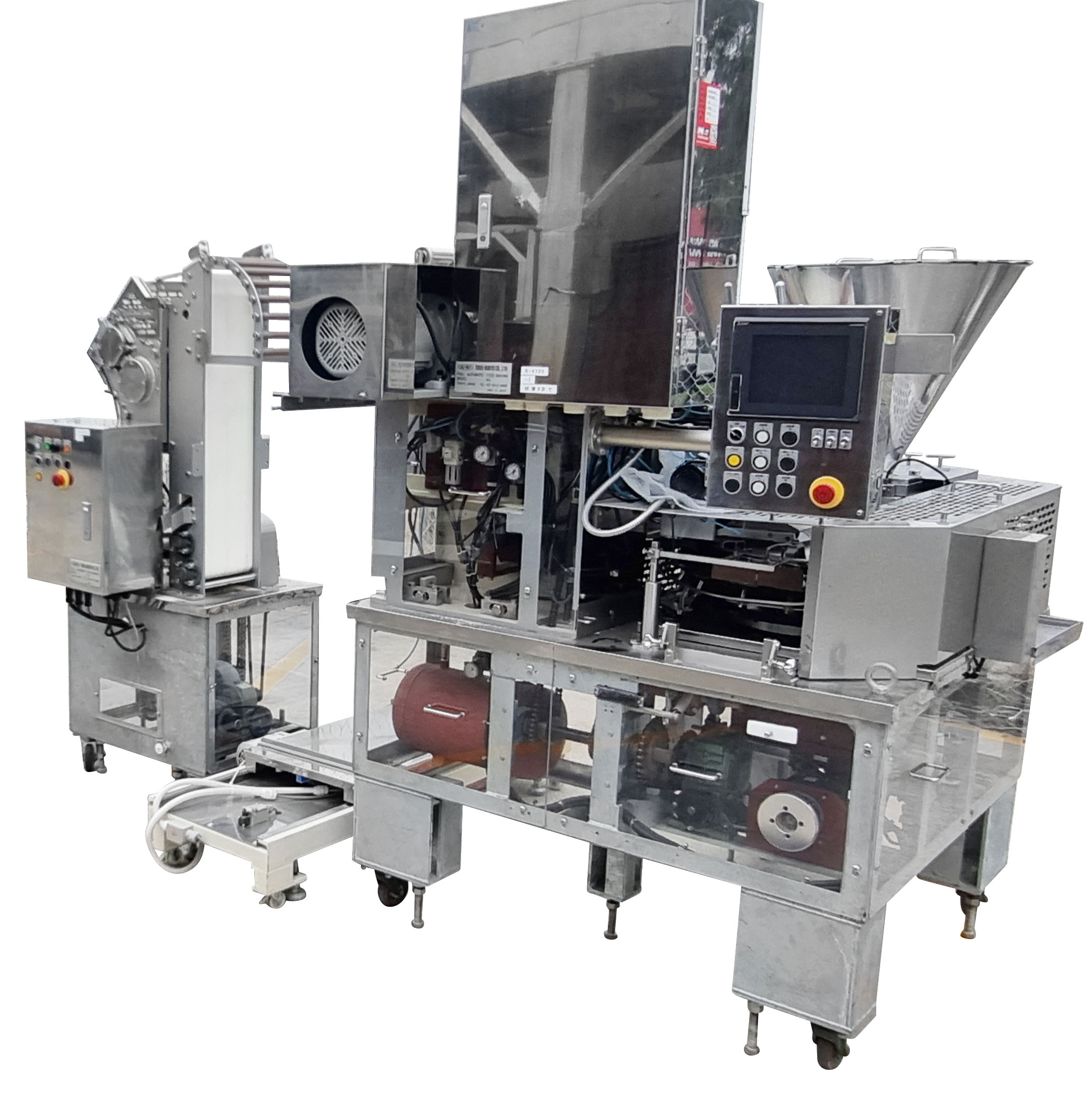

1. Tohsei Fully Automatic Dumpling Former
- Designed for precision dumpling forming with consistent size and shape.
- Compact and user-friendly design.

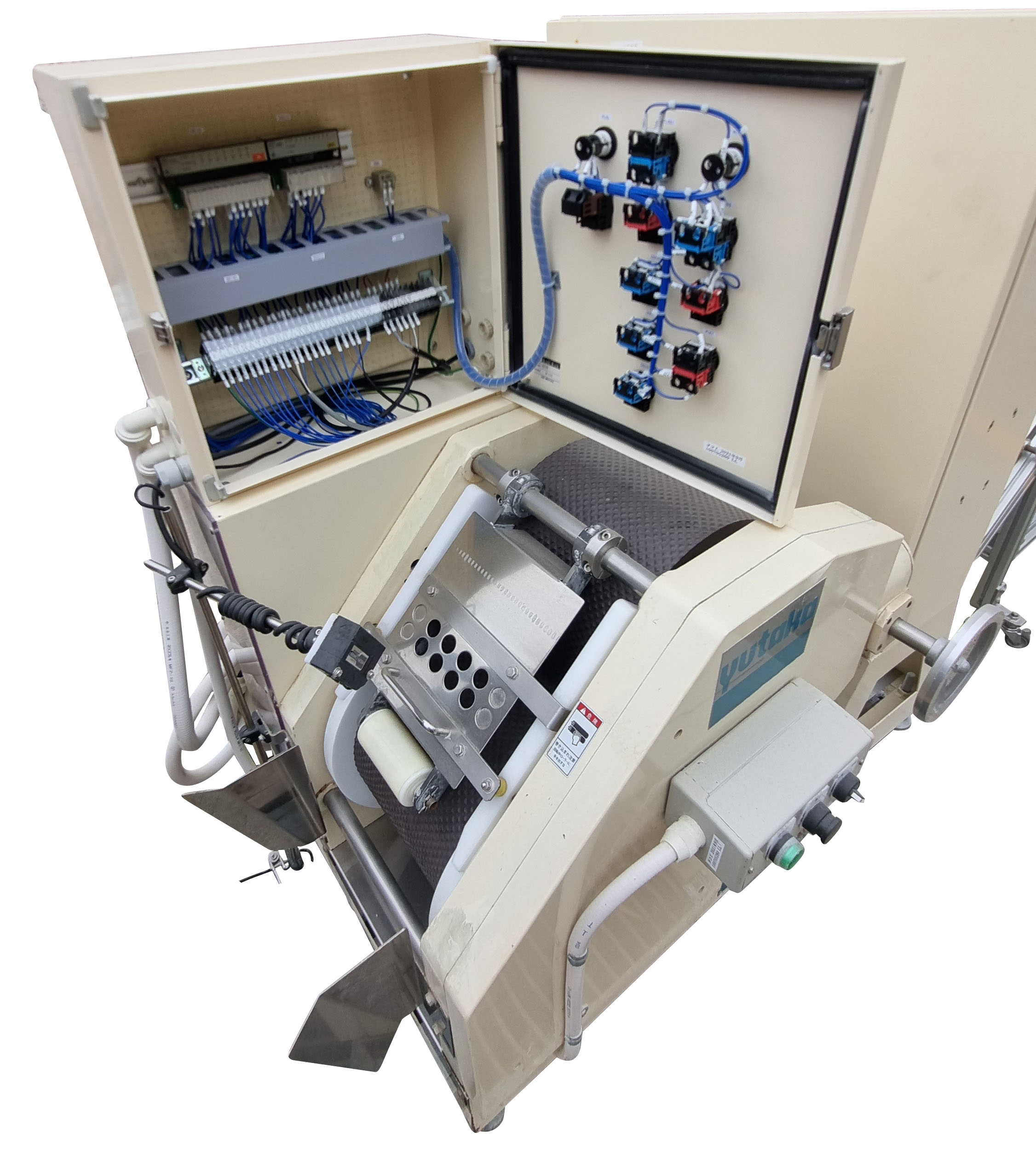

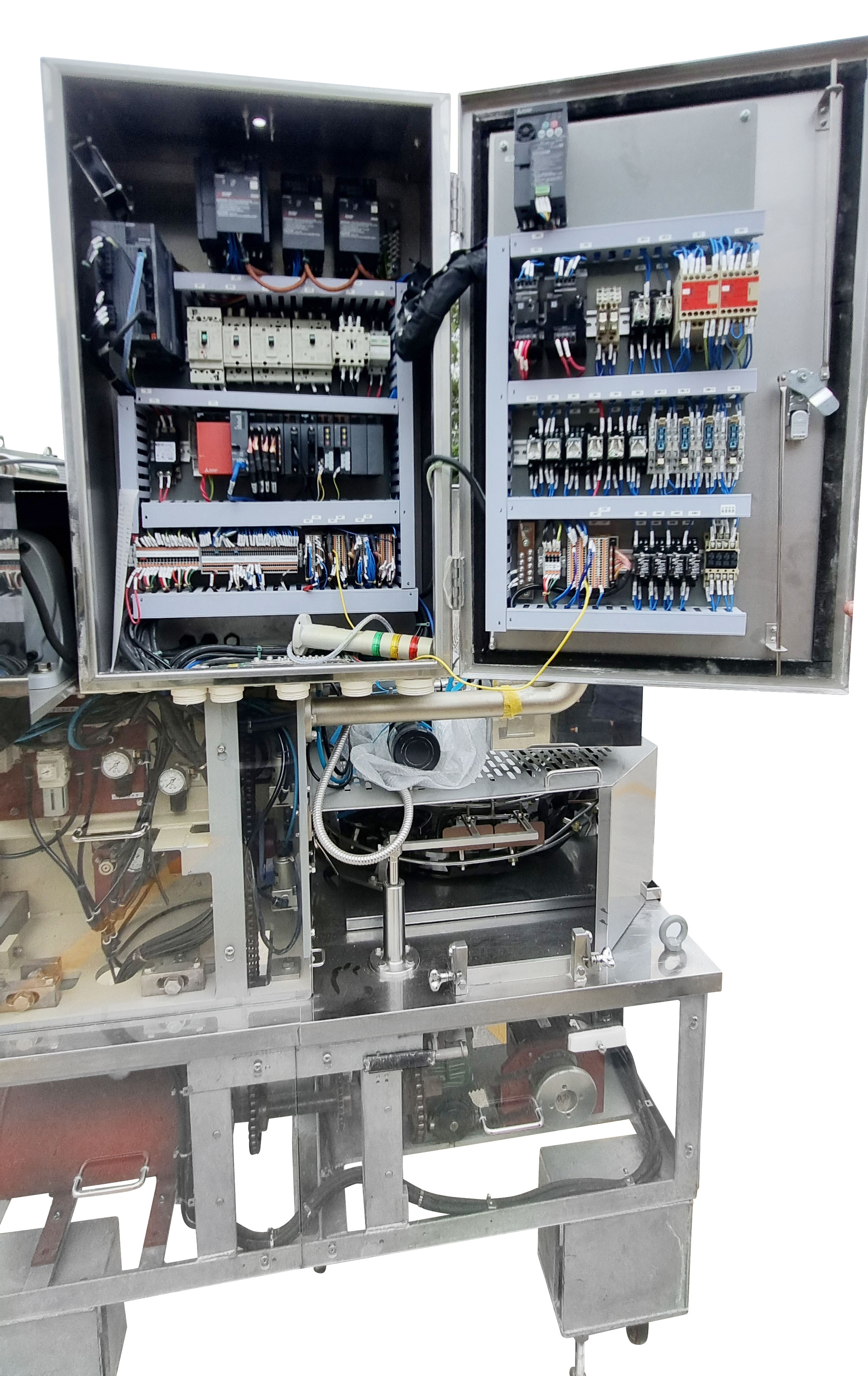

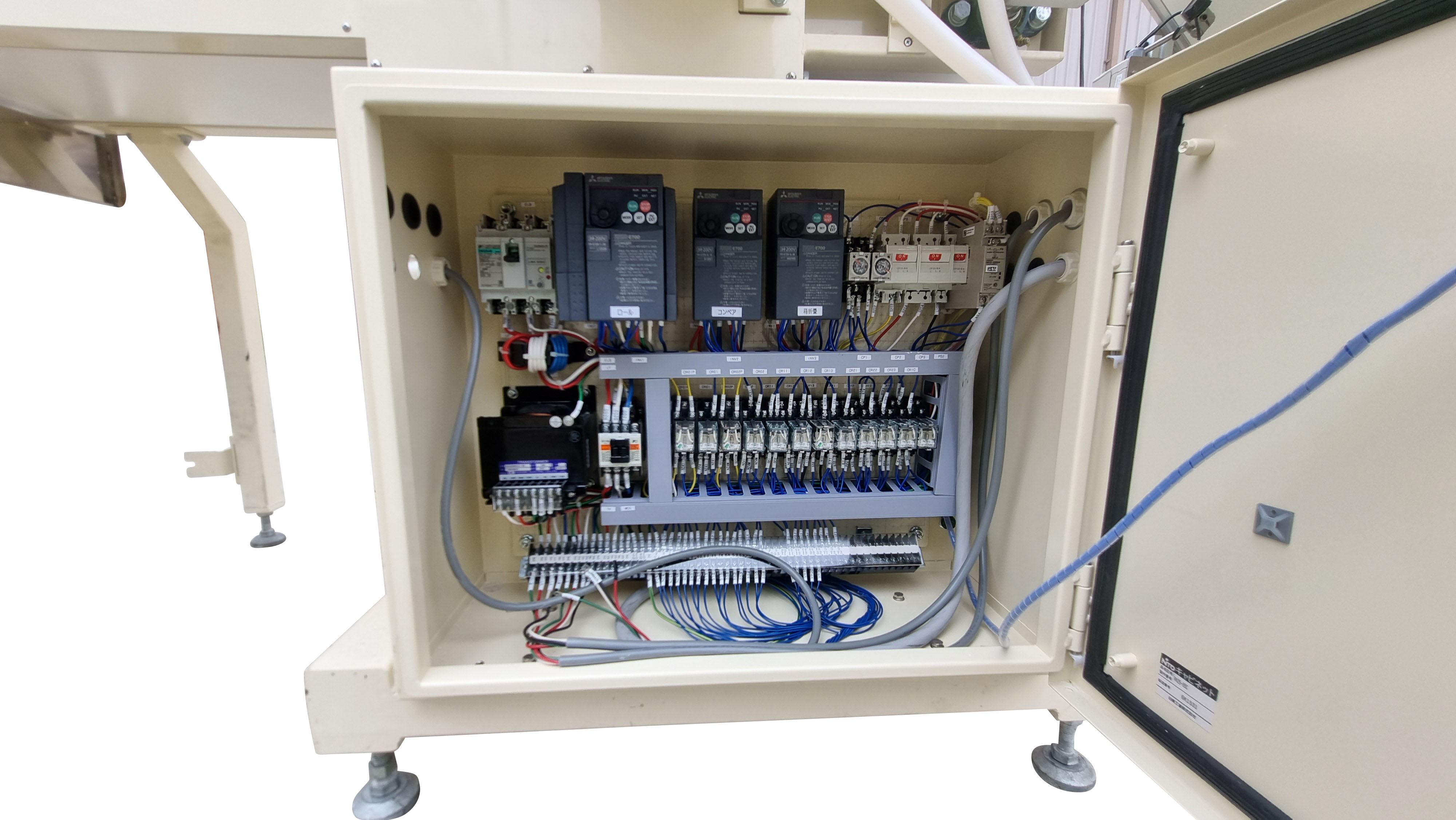

2. Control Panel
- Intuitive interface with control switches for ease of operation.

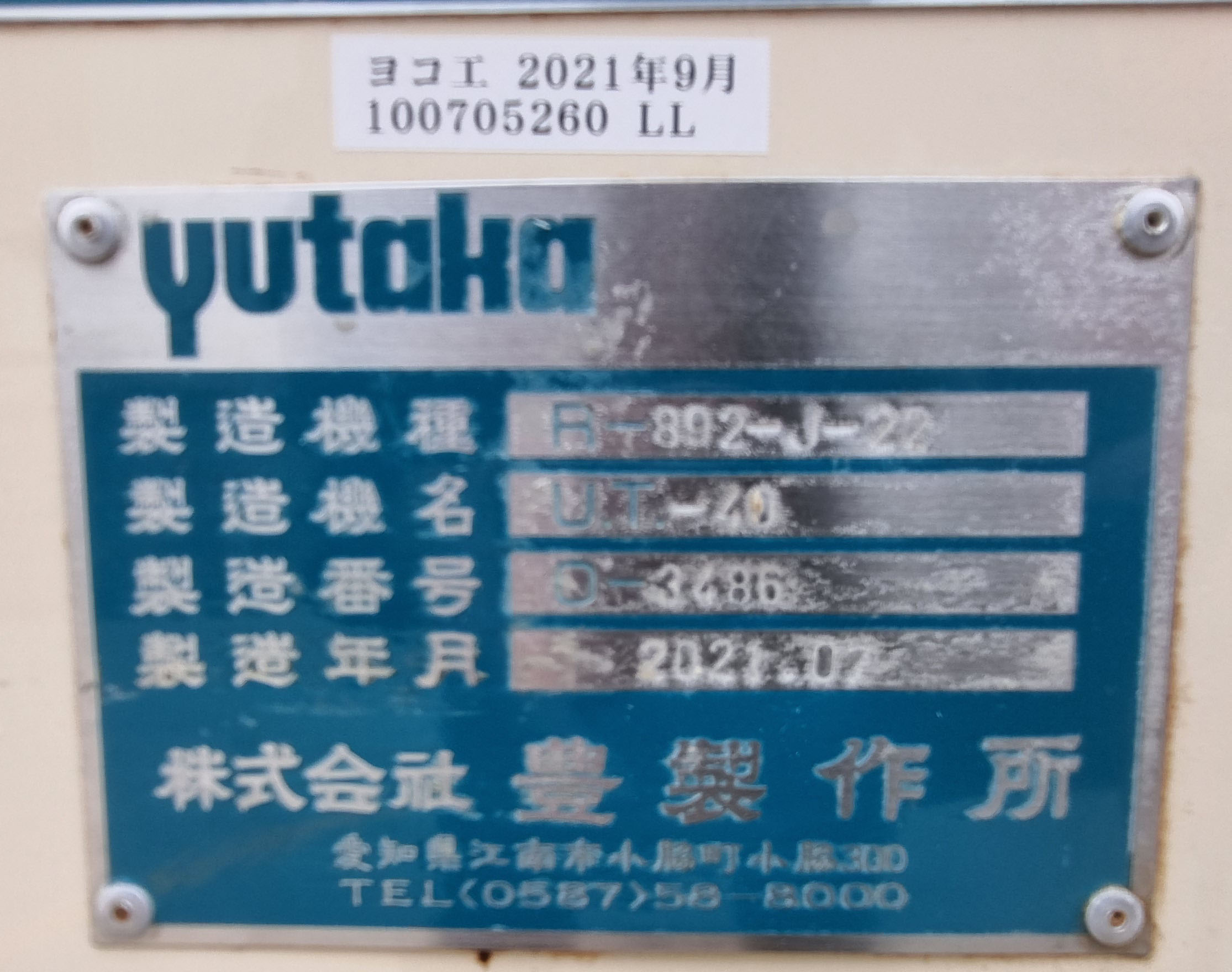

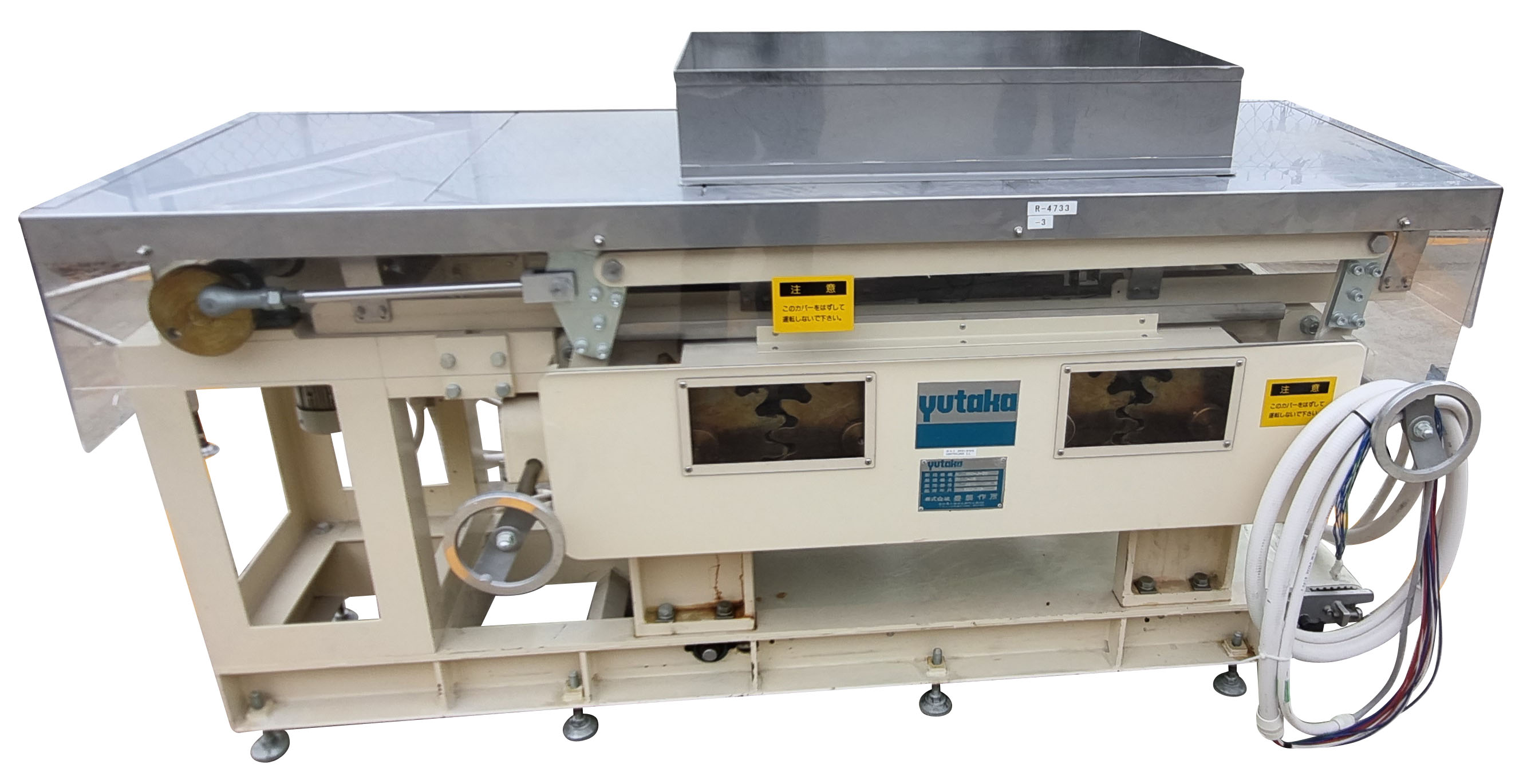

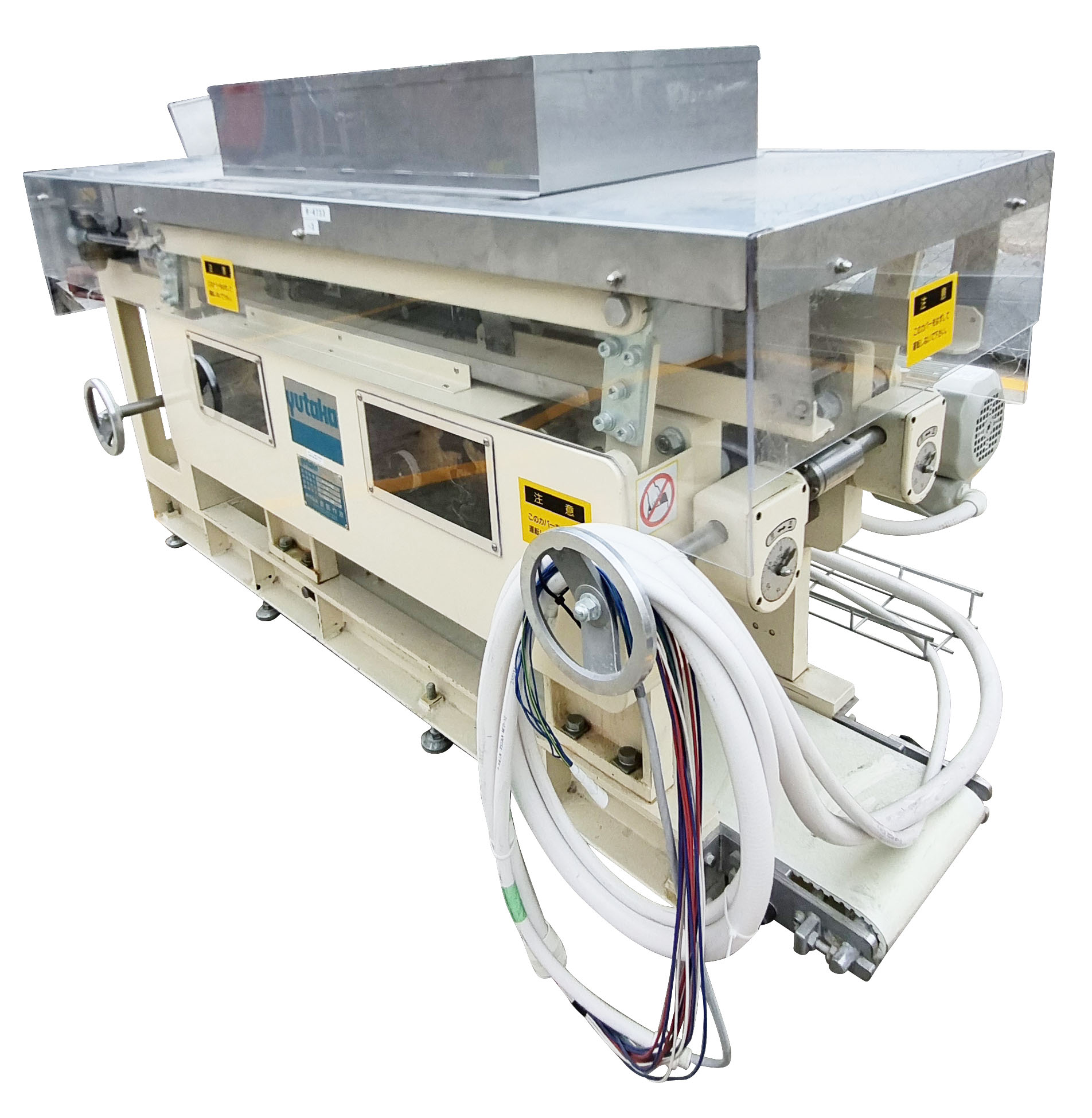

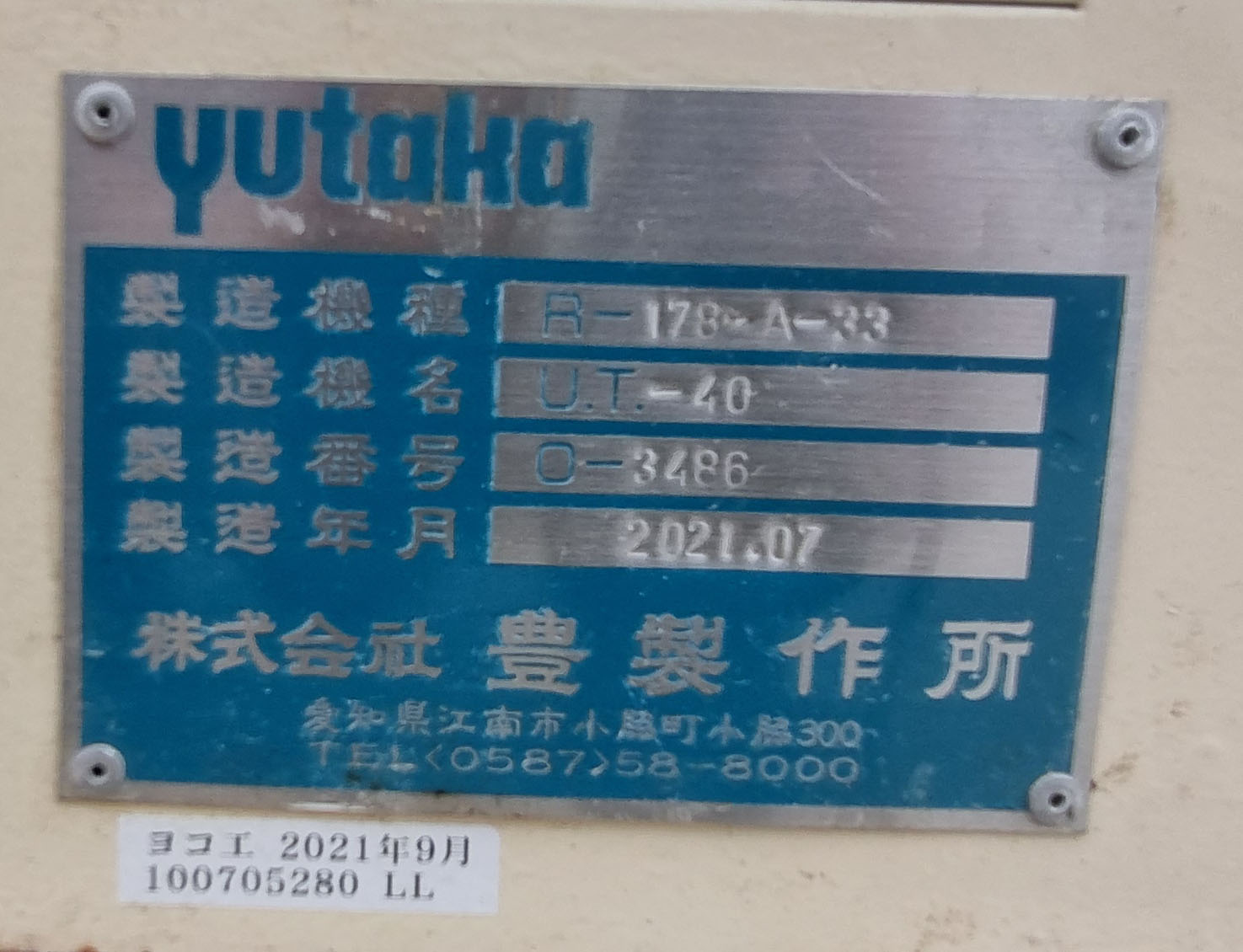

3. Yutaka Dough Rollers (Model UT-40) x2

Specifications:
- Roll Width: 230mm (customizable up to 600mm).
- Roll Diameter: 240mm to 290mm.
- Material: Hard chrome-plated rolls for durability and consistent performance.
- Power: 2.75kW–3.5kW with inverter control.

Features:
- Independent hollow motors for each roll.
- Satin roll options for improved dough elasticity.
- Flip-up conveyor system for easy cleaning.

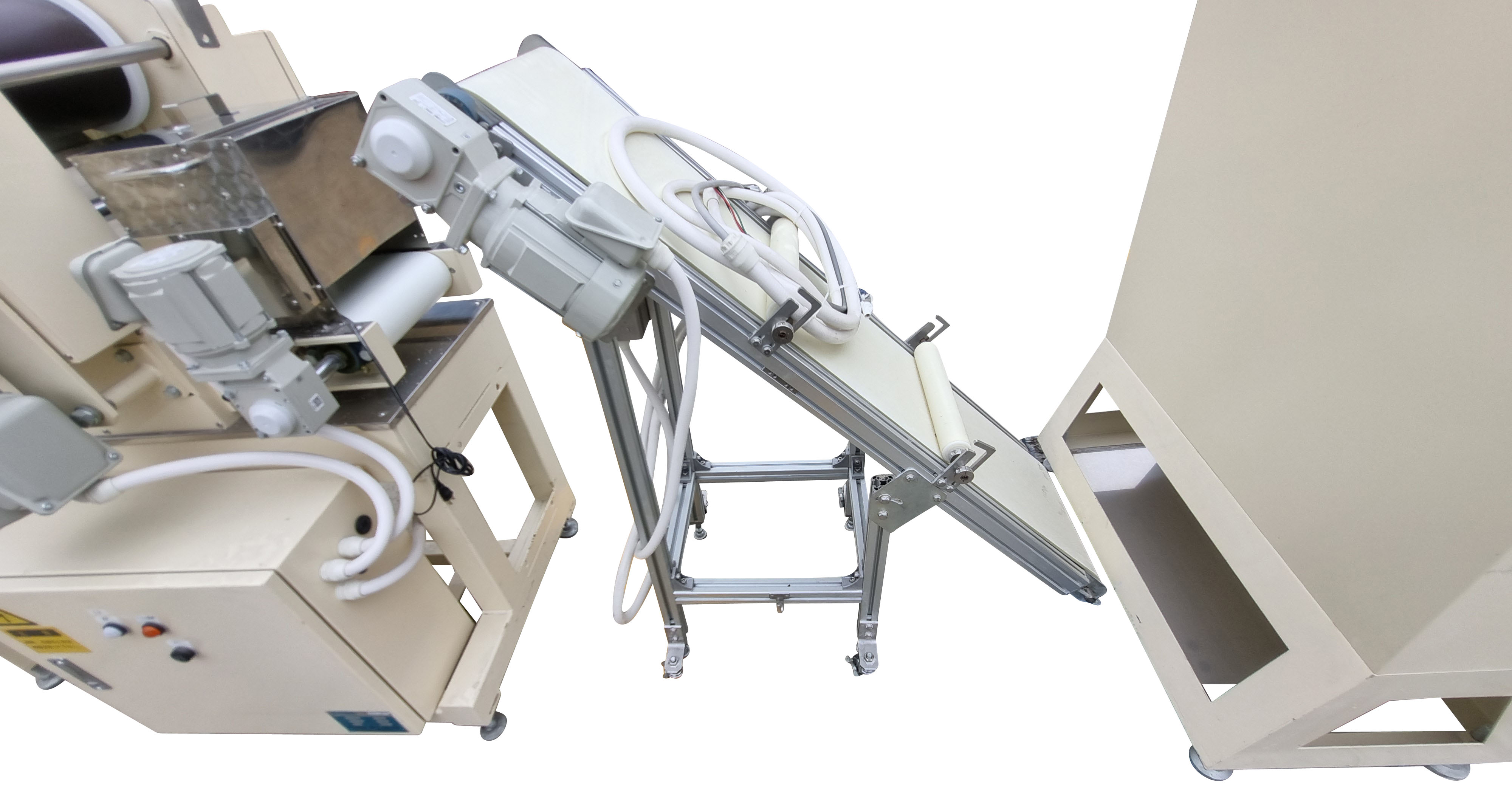

4. Inclined Conveyor
- Material: Food-safe conveyor belts.
- Flip-up pulley system for maintenance convenience.

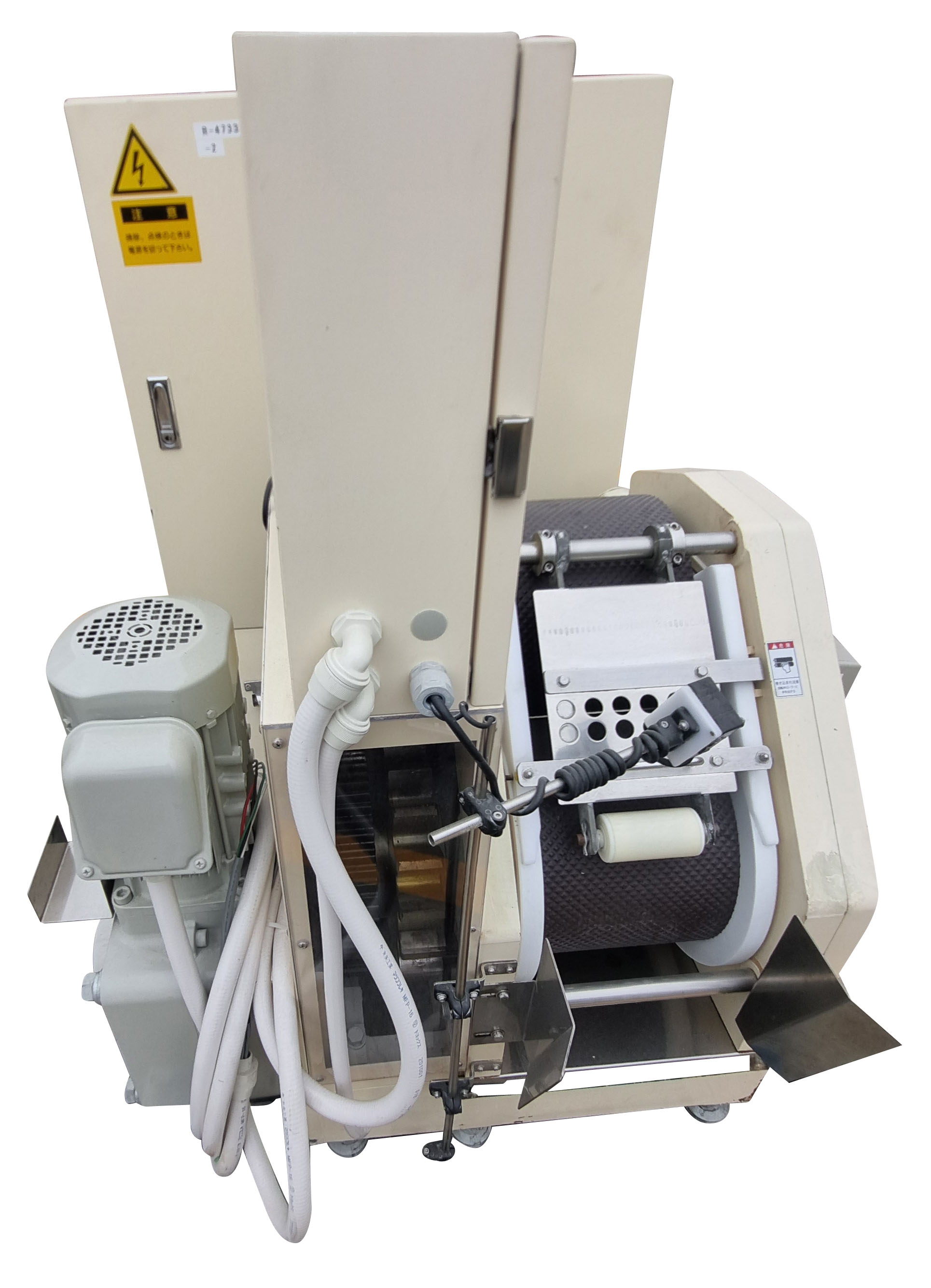

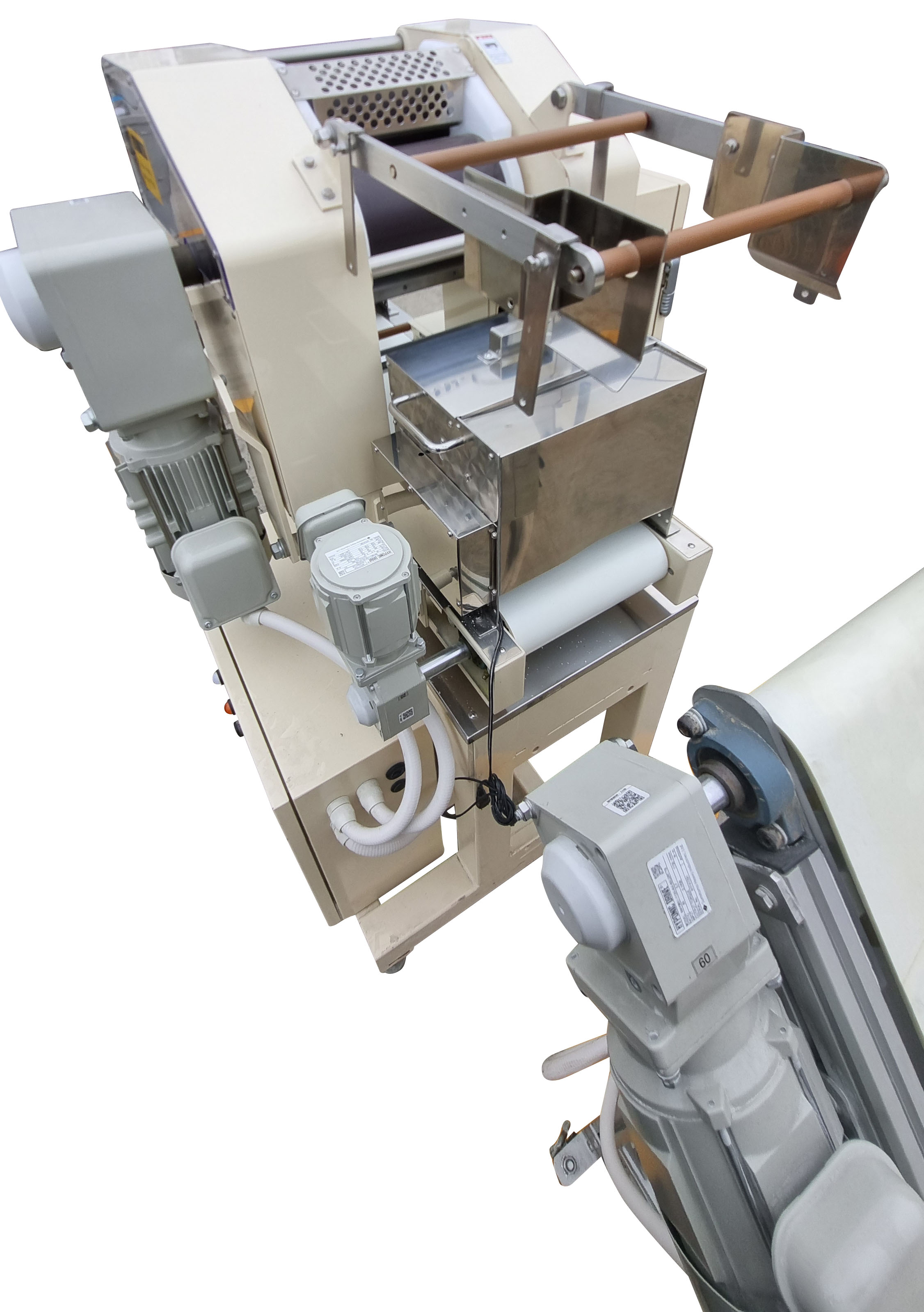

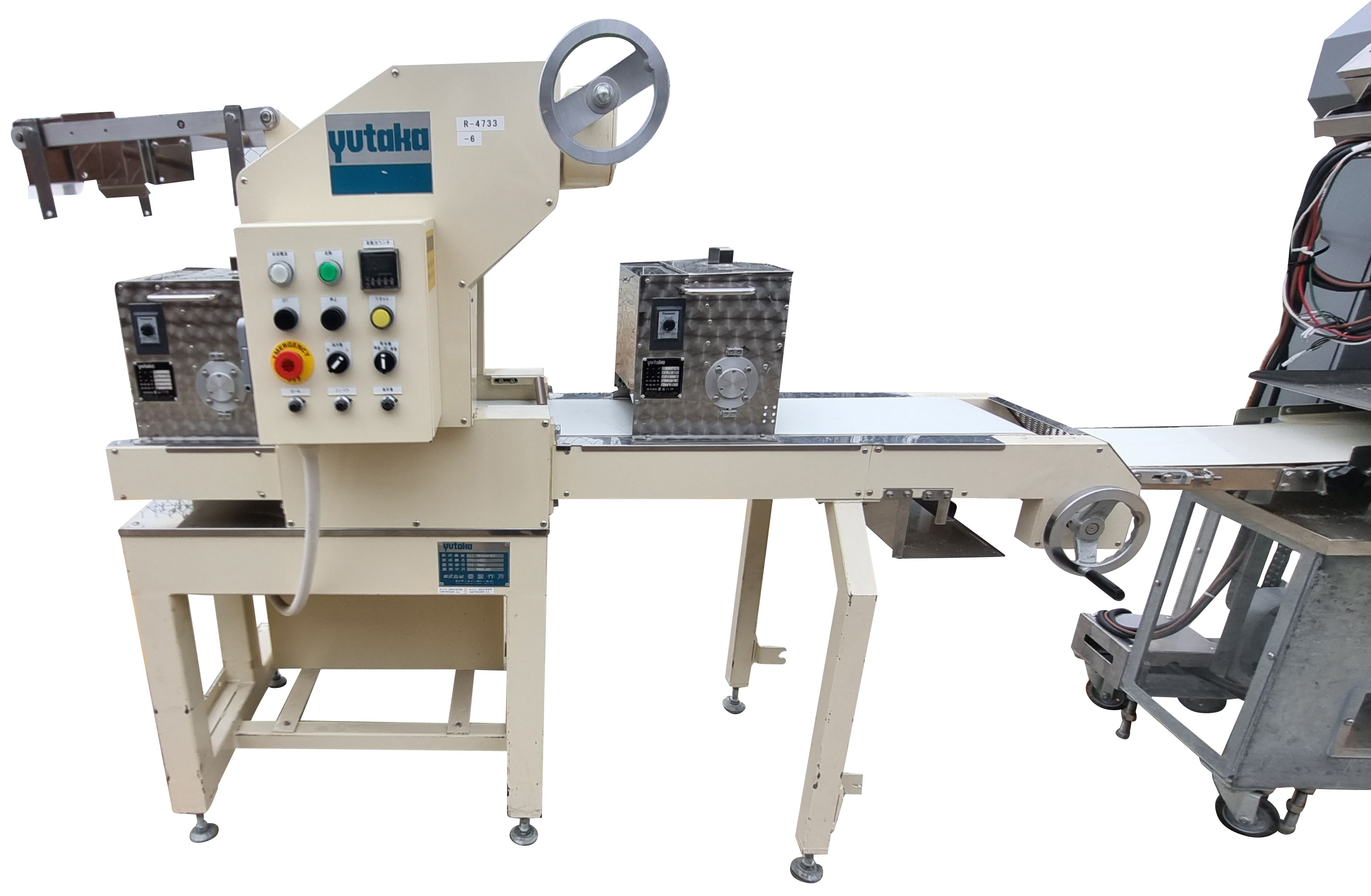

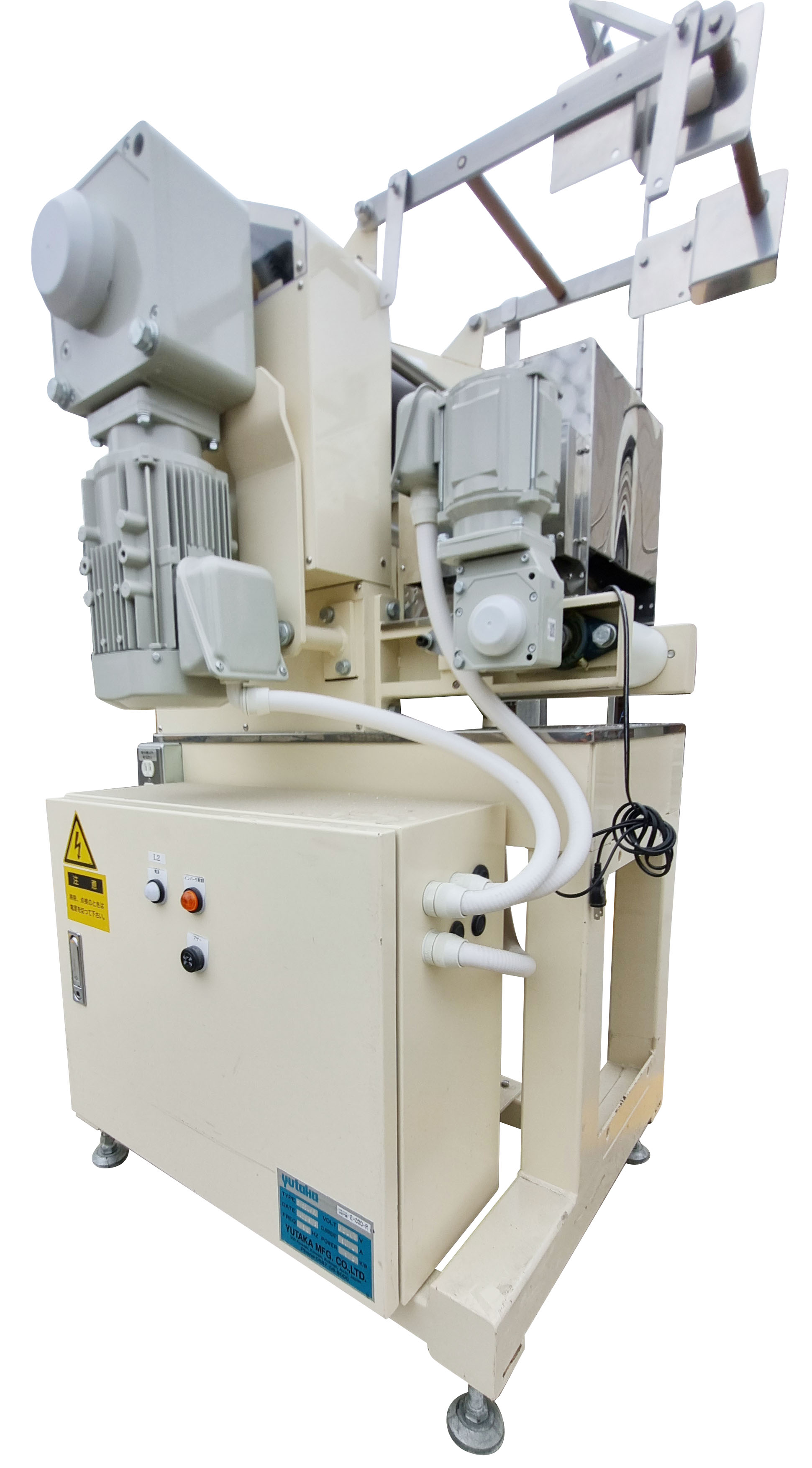

5. Dough Folding/Cutting Machine (Model UT-60)

Specifications:
- Maximum 60 cuts/min.
- Roll Width: 180mm–600mm.
- Power: 2.43kW–3.99kW with inverter control.

Features:
- Accurate dough metering with ±3g error.
- Easy-to-remove cutting blade for quick adjustments.
- Optional add-ons: starch spreader, ball-making device, and hand massage equipment.

6. Conveyor System
- Food-safe, antibacterial belts with adjustable speeds for smooth material transfer.

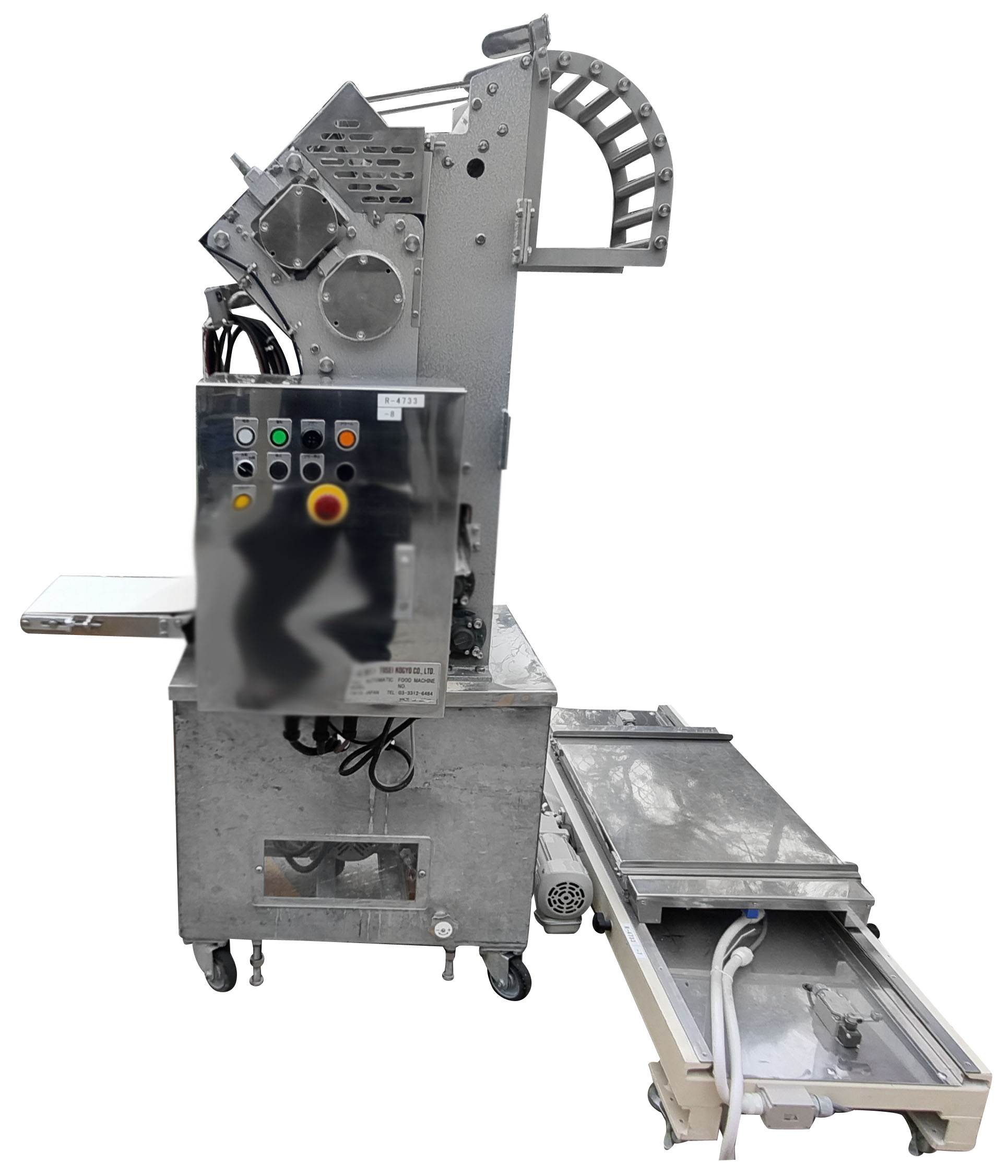

7. Tohsei Remaining Dough Recirculating Machine (Model DSR-16GNL)
- Ensures zero waste by collecting and reprocessing remaining dough into the system.

Technical Highlights

Electrical Requirements: 3 Phase, 415V, 50Hz, 10A.
Safety Features:
- Safety covers and limit switches on hazardous areas for operator protection.
- Maintenance-friendly design with chainless motor configuration.

Dimensions
- Yutaka UT-40: 3080L x 1331.5W x 1295H mm.
- Yutaka UT-60: 1723L x 780W x 1365H mm.

Key Advantages
- Efficiency: High-speed production with reduced waste and minimal manual intervention.
- Versatility: Accommodates a wide range of dumpling sizes, shapes, and dough types.
- Hygiene: Easy-to-clean components with food-safe materials for maximum sanitation.
- Durability: High-quality stainless steel construction ensures long-lasting performance.

Applications
Ideal for producing dumplings, gyoza, potstickers, and similar products for restaurants, catering services, and food processing plants.
...
Model A-16NAL
Size/Capacity Details to follow.
Stock number COMP24582S
Serial number 1497107
Condition Used
Year of manufacture 2021
