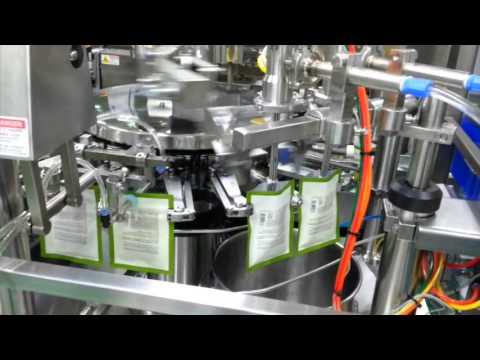

SQ Series Quadruplex Rotary Pouch Packing Machines

Models: 8SQ110 / 8SQ135 / 8SQ165 / 8SQ235

  • Extremely robust industrial pouch packaging machines designed for 24/7 production
  • Up to 200 bags/min
  • Wide range of pouches, including shaped pouches, stand up pouches, doy pouches, zipper pouches, slide zipper pouches, pouches with a spout and pouches with a pouring nozzle
  • Bag gripping range from 75 mm to 235 mm
  • Bag length of up to 320 mm
  • PLC control with touch screen operation
  • Compact design with small footprint


Machine

Standard and optional features available

  • Two rotary tables on a single platform for high speed operation up to 200 bags/min
  • PLC control with touch screen operation
  • Long durability welded steel frame
  • Washdown structure (IP65)
  • Compact design with small footprint
  • Easy access rotational touch screen
  • Production parameter memory incl. gripper size, machine speed, sealing temperature, filling volume
  • Pouch presence detection - no filling, no sealing
  • De-aeration with wire guide or push bars
  • Steam/gas flush
  • Automatic deoxidizer feeding station
  • Product filling - can be integrated with weighing scales/auger filler/cup conveyor
  • Two step sealing process guarantees clean seal, cooling station for liquid product
  • Encoder controlled inkjet printer for accurate printing position at high speed
  • Mechanical zipper opener
  • Available to accommodate 2 different products at the same time


Machine options

  • Fully interlocked safety guards
  • Jacketed hopper for hot fill
  • Zipper opening device
  • Gas (N₂/Co₂) flush and steam flush
  • Washdown structure (IP65) with linear drainage (trench drains)
  • CIP (clean in place)
  • Date coding: emboss, hot stamp, inkjet, thermal transfer
  • Quality checking: checkweigher, metal detector, X-ray inspector, vision inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Ethernet connectivity


Filling options

  • Volumetric filler
  • Auger filler
  • Piston pump
  • Mono pump
  • Multi-head weighing
  • Linear weighing
  • Cup conveyor


Product conveying options

  • Spring conveyor (powder)
  • Bucket conveyor
  • Vibrating feeder
  • Vacuum loader
  • Screw conveyor


Applications

  • Powder
  • Granule
  • Fresh fruit/vegetables
  • IQF (individually quick frozen)
  • Cereal/Nuts/Snacks
  • Candy
  • Pasta/Beans/Rice
  • Meat/Poultry/Fish
  • Sauce, sauce/solid mix
  • Liquid detergent, softener, painting and cooking oil
  • Pet food/Snacks
  • Hardware/Non-Food Products
  • Facial mask pack
  • Strips/Sachets/Stick Packs into a Pouch


Specifications

Max. speed per minute (idle cycle)200 (8SQ110)
200 (8SQ135)
180 (8SQ165)
80 (8SQ235)
Bag gripping range75-110 mm (8SQ110)
90-135 mm (8SQ135)
90-165 mm (8SQ165)
90-235 mm (8SQ235)
Maximum bag length320 mm
Electrical requirements220-430V, 3-phase, 50/60Hz
Compressed air900 L/min @ 6 bar


Drawings
